Electrical Box 20 in. x 12 in. x 10 in. NEMA 4X Steel Enclosure Reinforced Lock & Hinge Junction Box with Mounting Plate by VEVOR
Original price was: $161.11.$94.99Current price is: $94.99.
Precision cut and welded sturdy steel construction
4 Wall-mounted mounting holes on the back for easy installation
Protect your equipment from the influence of the weather
- Multiple payment methods, 100% payment security
- The quality you expect, the service you deserve.
- Online assistance, always just a message away.
- Quality and Affordability Combined

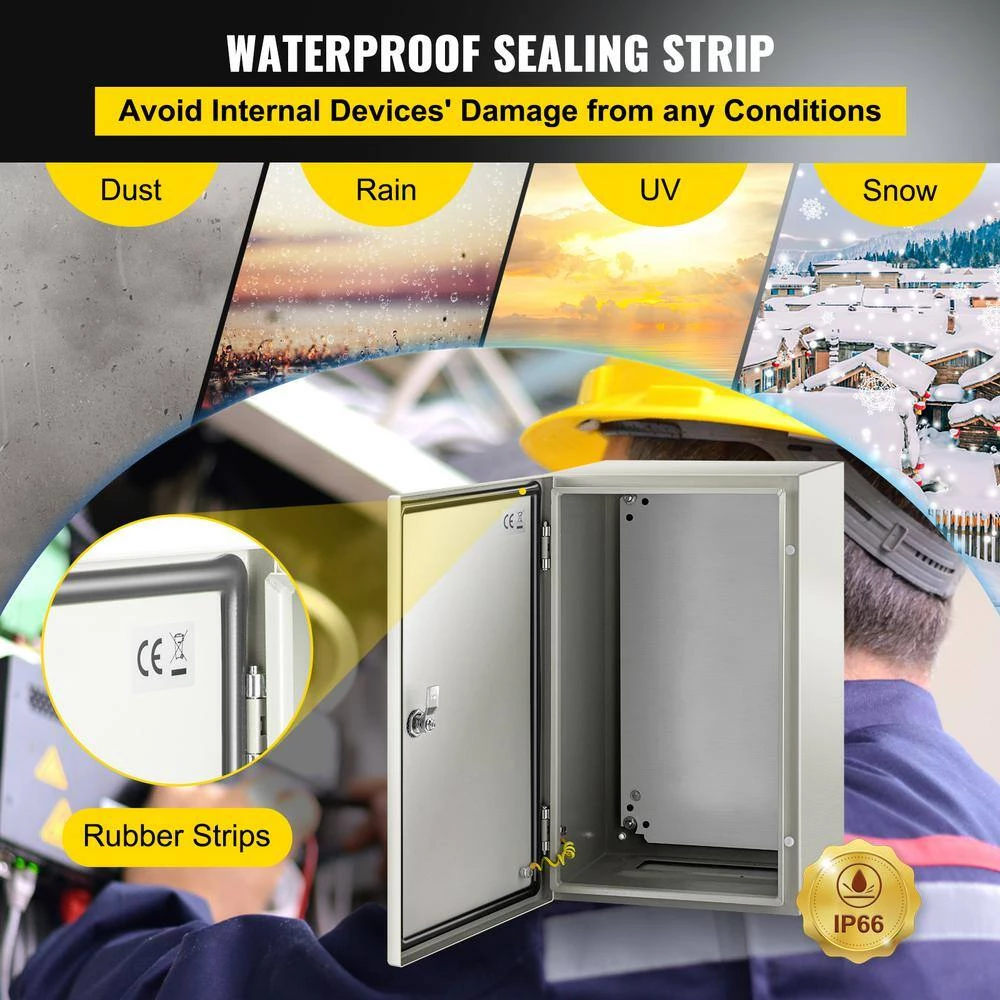

The VEVOR electric enclosure box is made of high-quality carbon steel. Precise lock design, high-strength hinges, sealing strips, and IP66 protection grade are all used to protect your plug-ins, power cords, and other equipment from the influence of the weather. Therefore, to ensure the circuit protected from liquids and corrosion.
- Sturdy steel construction: made of 1.5 mm cold-rolled steel, precision cut and welded, our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments
- IP66 waterproof grade: comply with NEMA 4X & IP66, excellent water resistance, and dust resistance, direct us as the first option when unfulfilling your demands, VEVOR will resolve any feedback

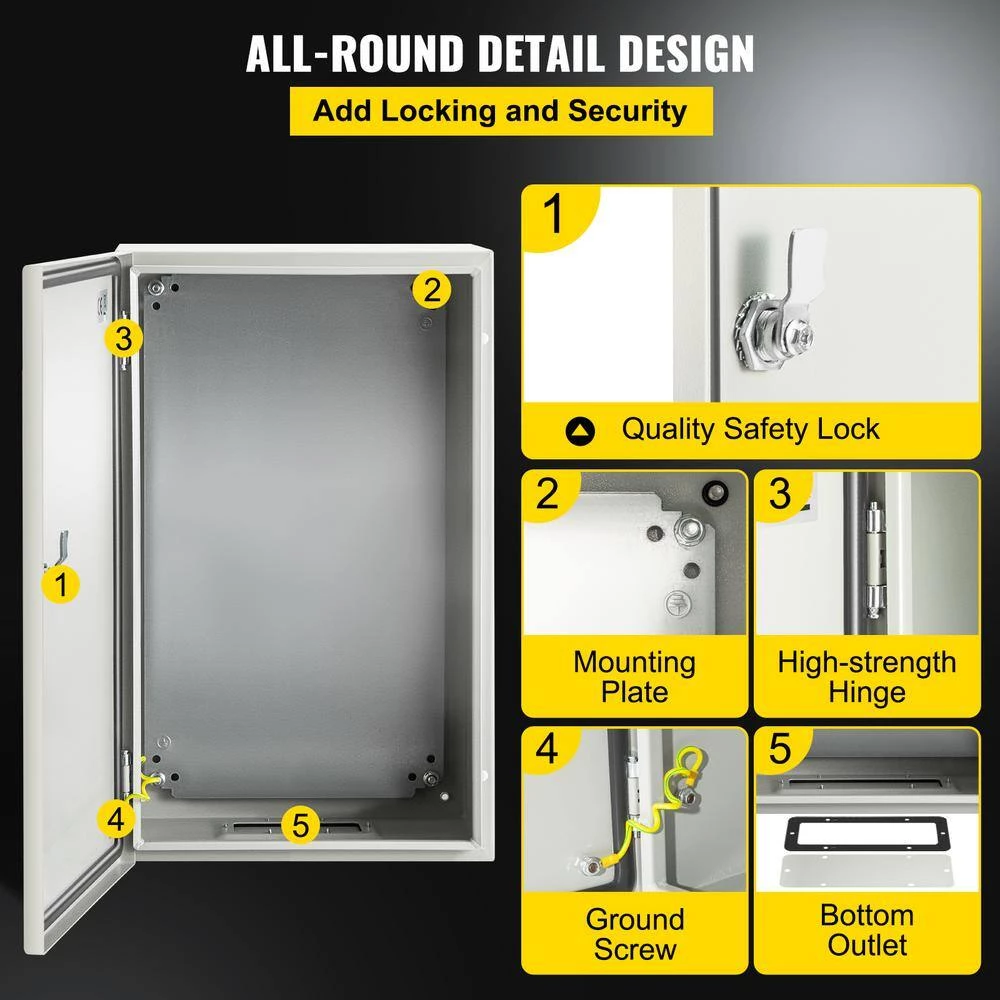

- Reinforced lock & hinge: the high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing, the shell box adopts a high-quality lock core to increase safety and lockability

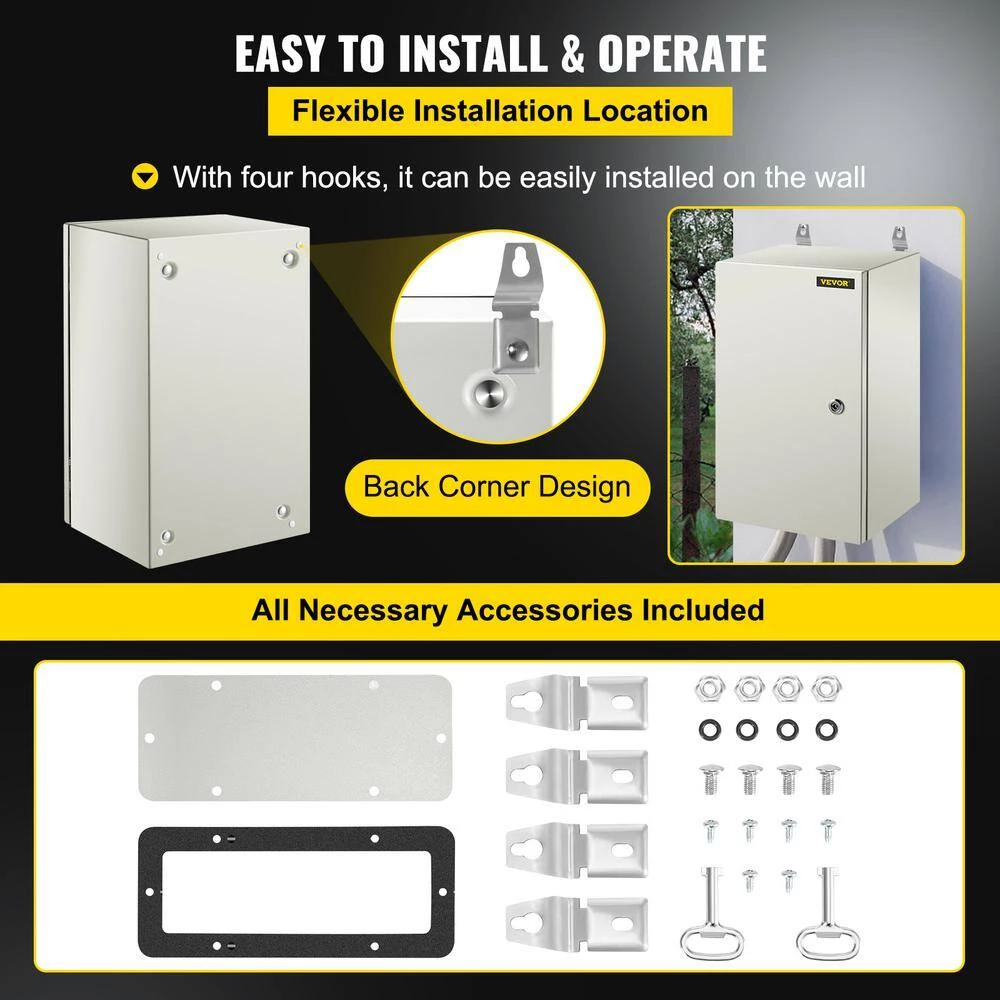

- Convenient operation: the junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components, the 4 wall-mounted mounting holes on the back can quickly fix the electrical box on the wall
- Exquisite details design: thebottom of the electrical box is designed to facilitate threading, the grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables

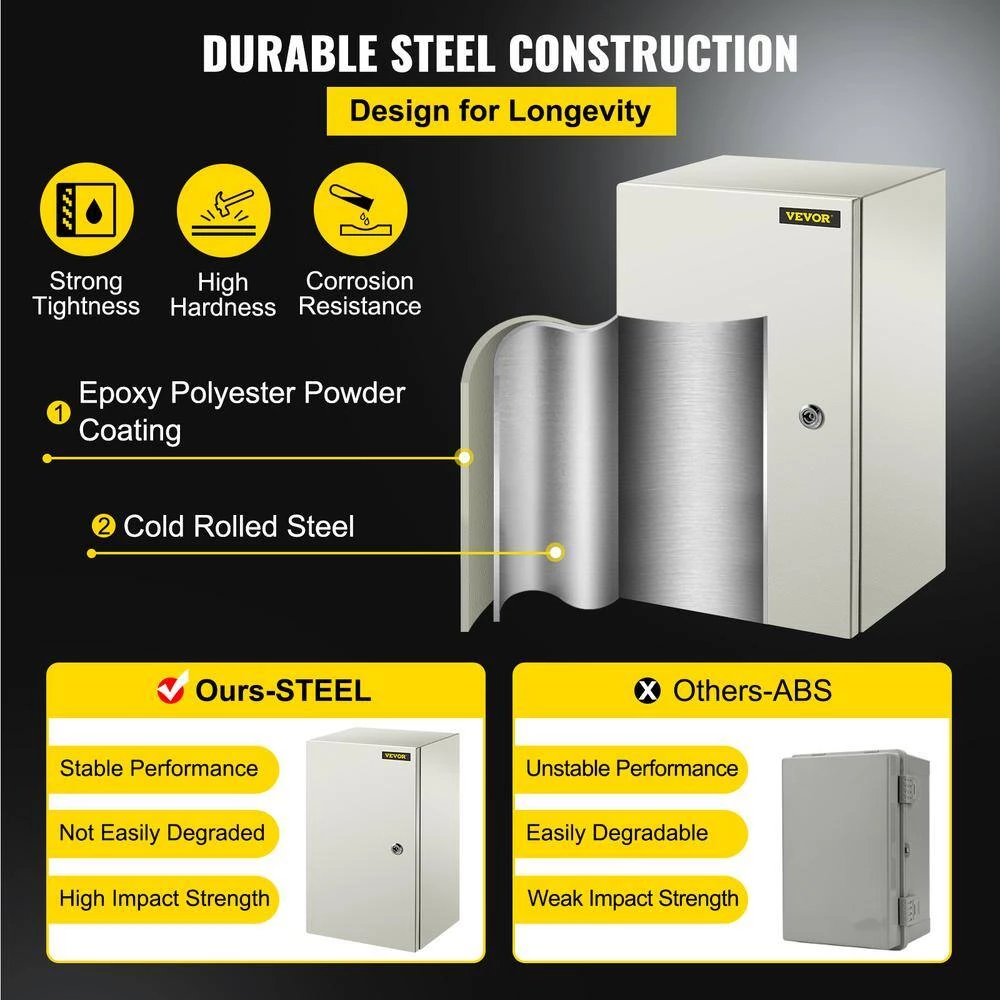

- Color: gray (RAL7032), material: 0.059 in./1.5 mm carbon steel , coating: epoxy polyester powder coating
- Mounting plate: 0.079 in./2 mm detachable galvanized backplate
- IP Rating: designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
- Connection type: hinged, feature: lockable, waterproof

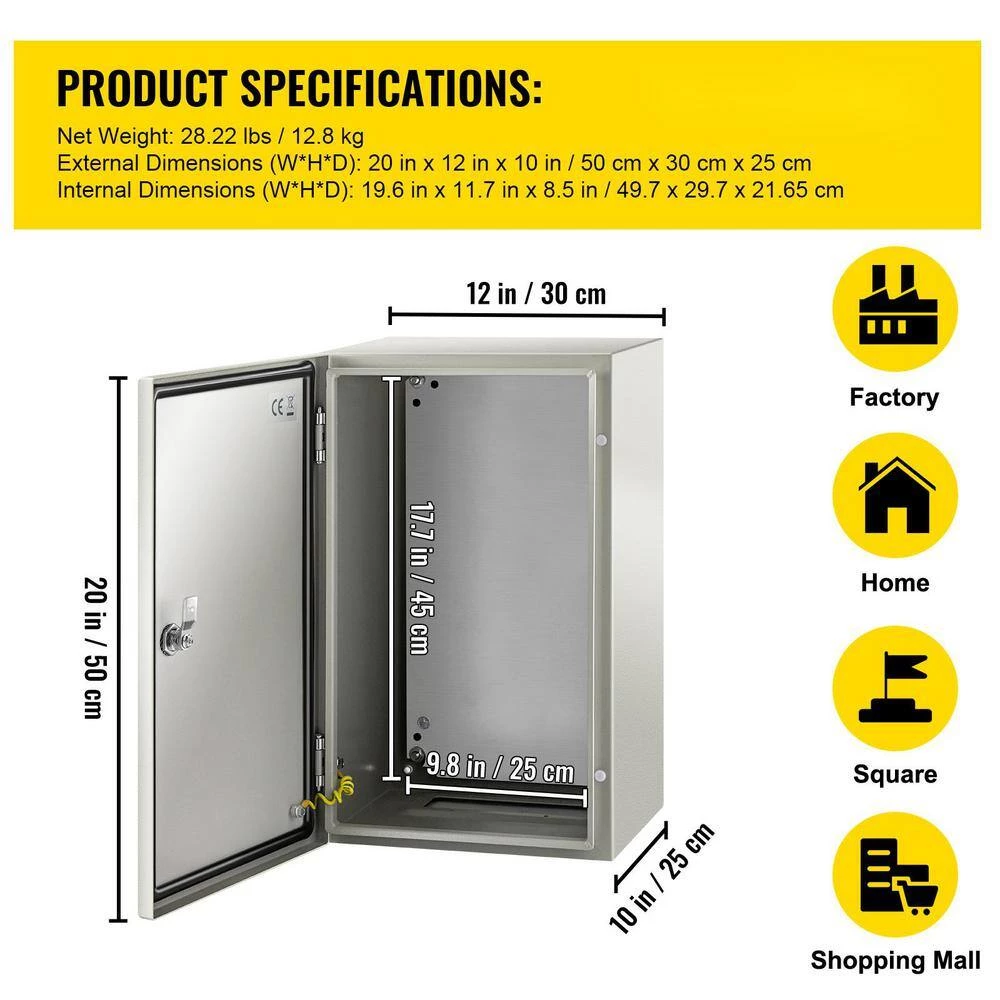

- Galvanized backplate dimensions: 17.7 in. x 9.8 in. ,outer dimensions (W x H x D): 20 in. x 12 in. x 10 in. ,inner dimensions (W x H x D): 19.6 in. x 11.7 in. x 8.5 in.
- Product weight: 28.22 lbs., certification: CE/ROHS certification

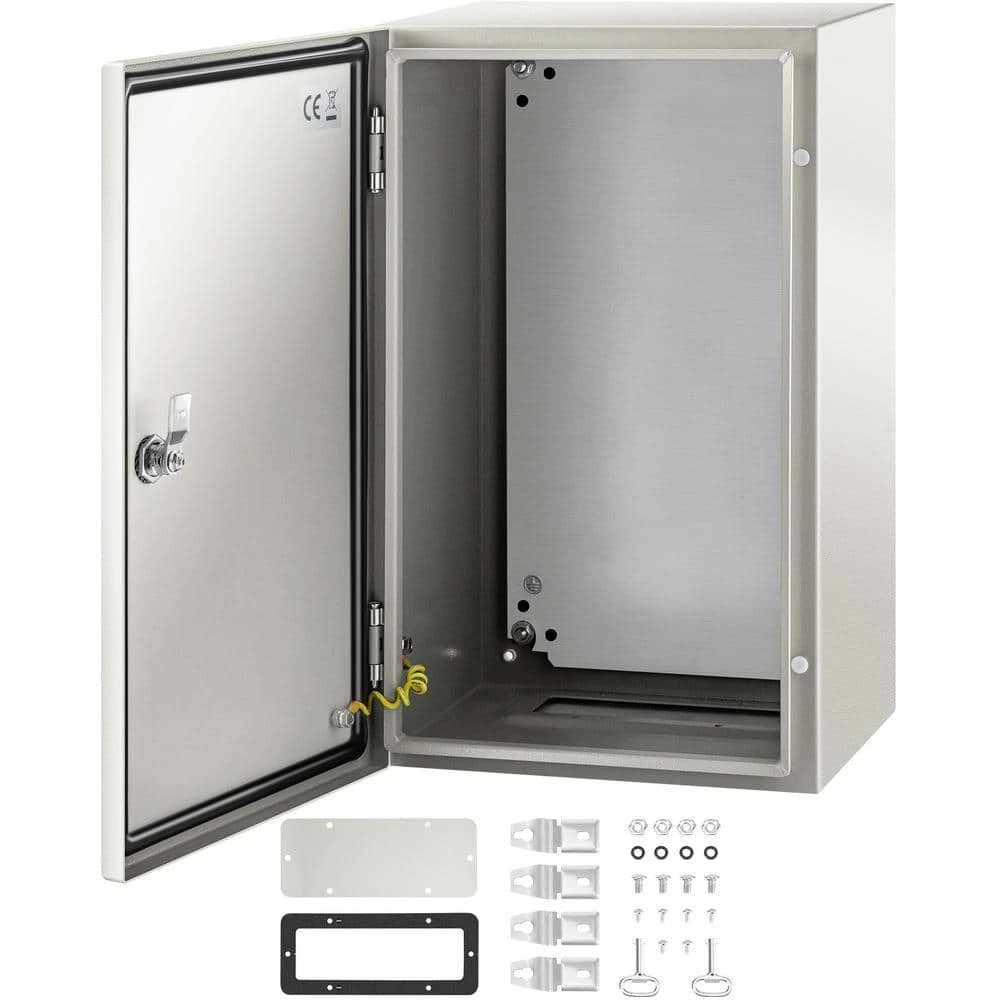

- Package content :1 x electrical box ,2 x keys ,1 x mounting plate(the mounting plate has been assembled in the box) ,1 x set of wall mounting pendants ,1 x bottom sealing plate
| Color Family | Gray |
|---|---|
| Color/Finish | Gray |
| Electrical Product Type | Box |
| Material | Steel |
| Metallic/Non-Metallic | Metallic |
| Mounting | Screw On,Wall |
| Package Quantity | 1 |
| Product Weight (lb.) | 28.22 lb |
| Returnable | 90-Day |
| Certifications and Listings | CE Certified,ROHS |
| Manufacturer Warranty | 1-Year |
| Product Depth (in.) | 20 in |
| Product Height (in.) | 10 in |
| Product Width (in.) | 12 in |
| Trade Size (in.) | #10 |
