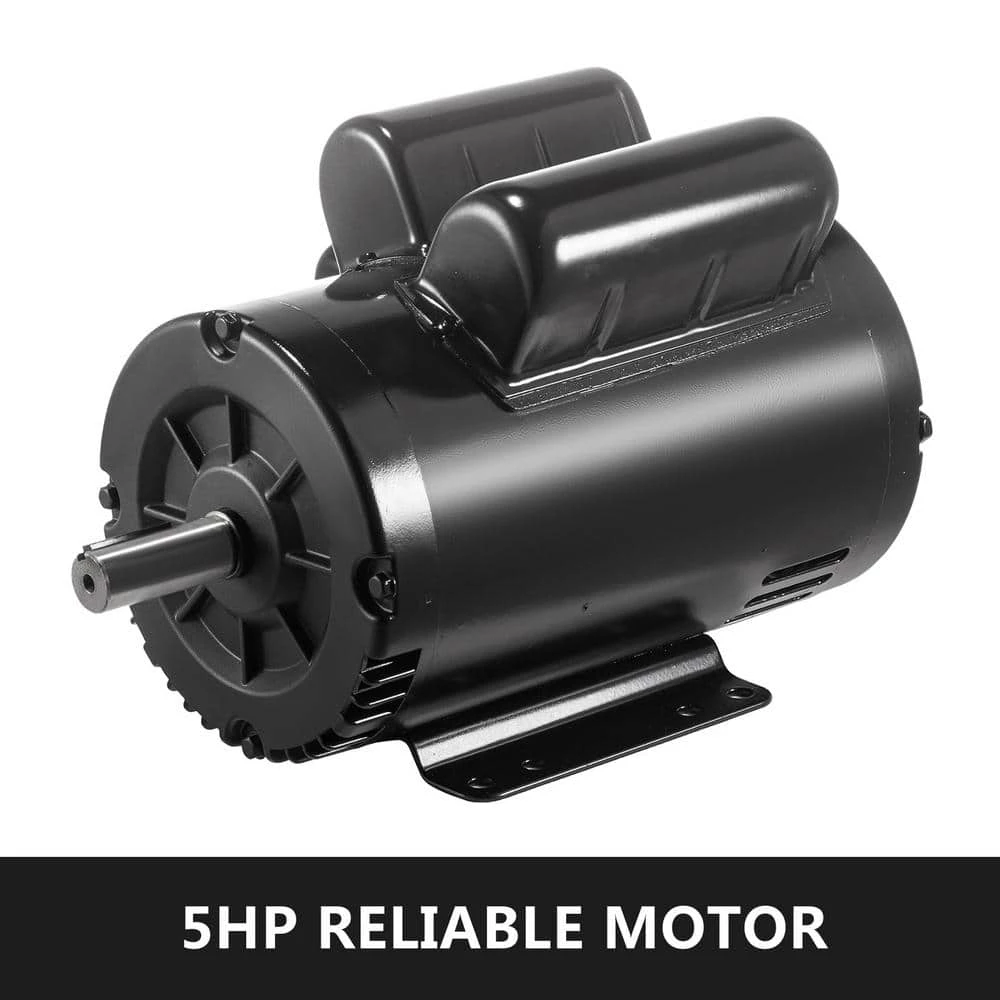

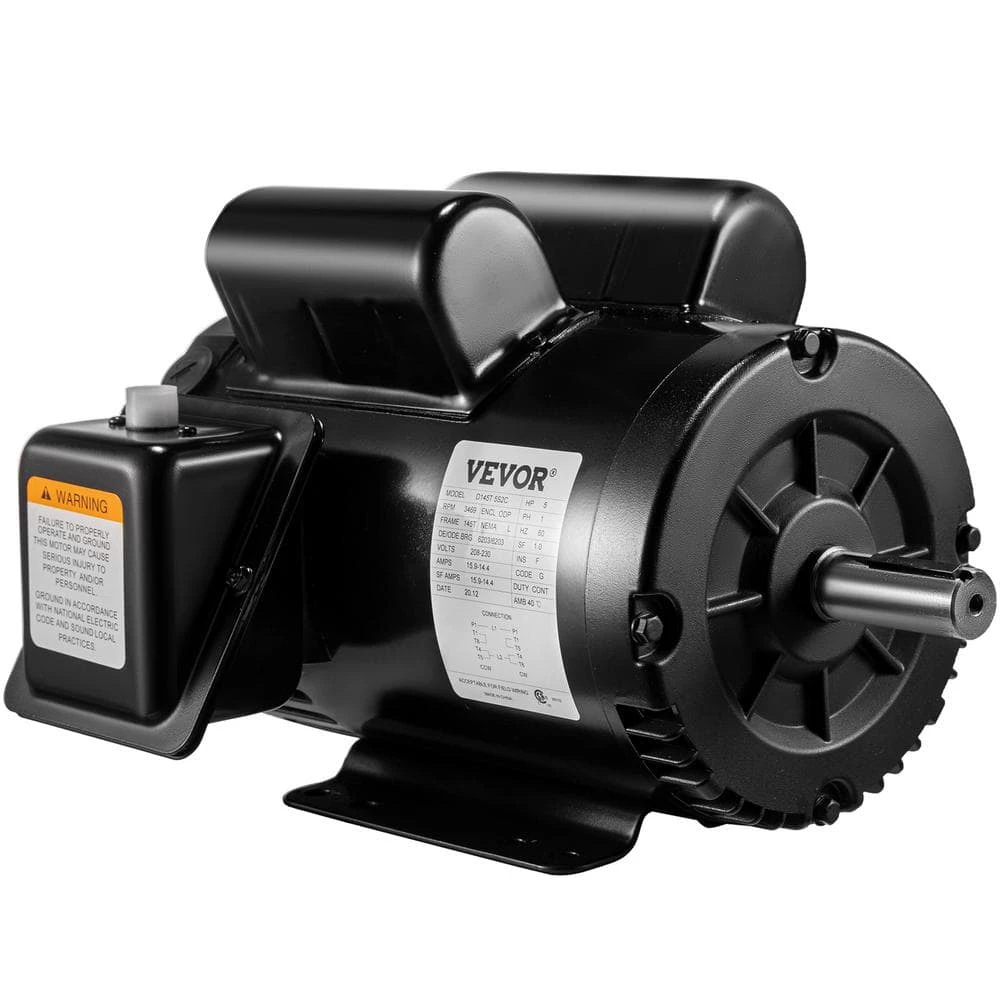

5 HP Electric Compressor Motor 3450 RPM 143 T/56 T Frame Single Phase 7/8 in. Shaft Diameter Air Compressor Motor by VEVOR

New 5 HP 230 volt compressor duty electric motor. The VEVOR motor features a 143/5T frame with a 7/8 in. diameter shaft and is 3450 RPM. This is a non-reversible motor and feature counter-clockwise (CCW) rotation facing the shaft. This high-quality motor is able to reduce the starting amperage design to ensure the reduced voltage starting at rated load. Open drip proof is better used in the environment that are relatively clean and dry environments. Special design for Air Compressor duty.

• Powerful AC motor: the compact and small-sized electric compressor motor features output 5 HP, 143/5 T frame, and single phase, the robust and reliable metal material shell protects the inner circuit from thermal overloading

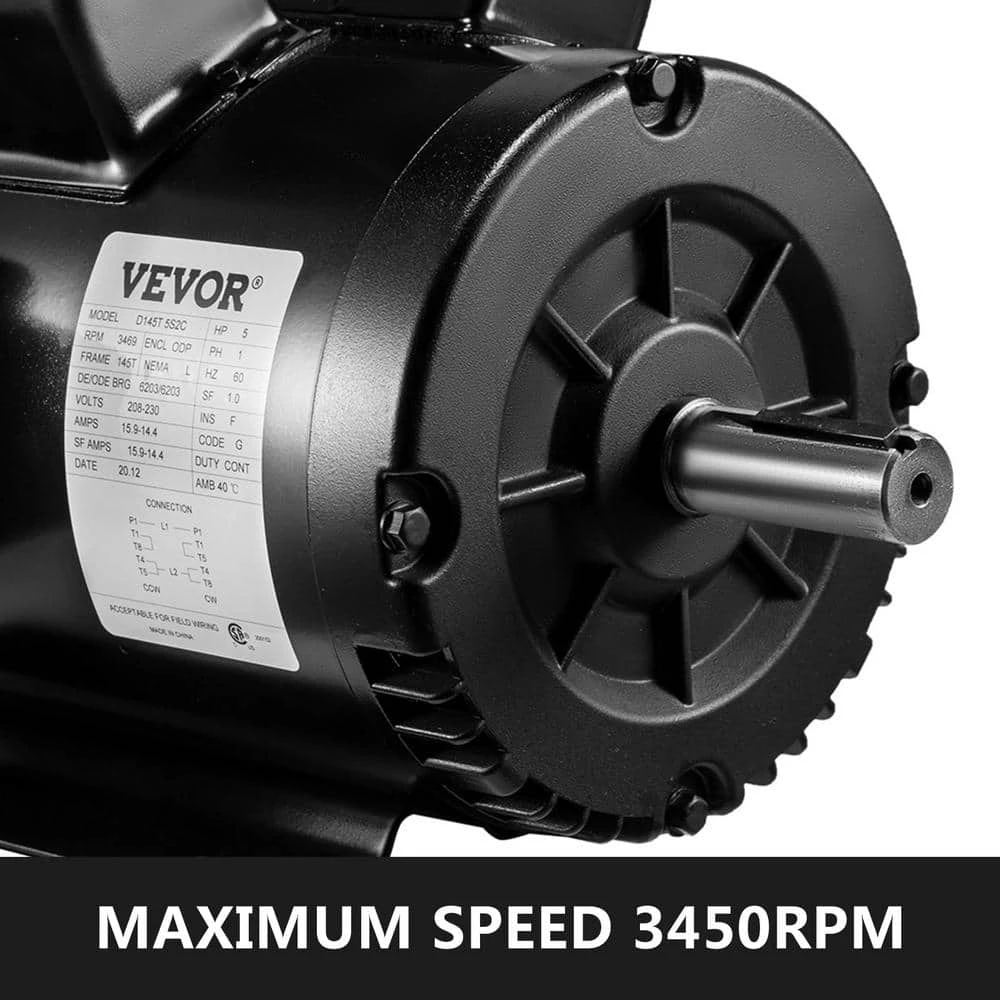

• 3450 RPM high speed: the compressor duty motor can run at the rated speed of 3450 RPM with high working efficiency, electric AC motor runs with 5 HP, shaft diameter: 7/8 in., shaft length: 2.36 in.

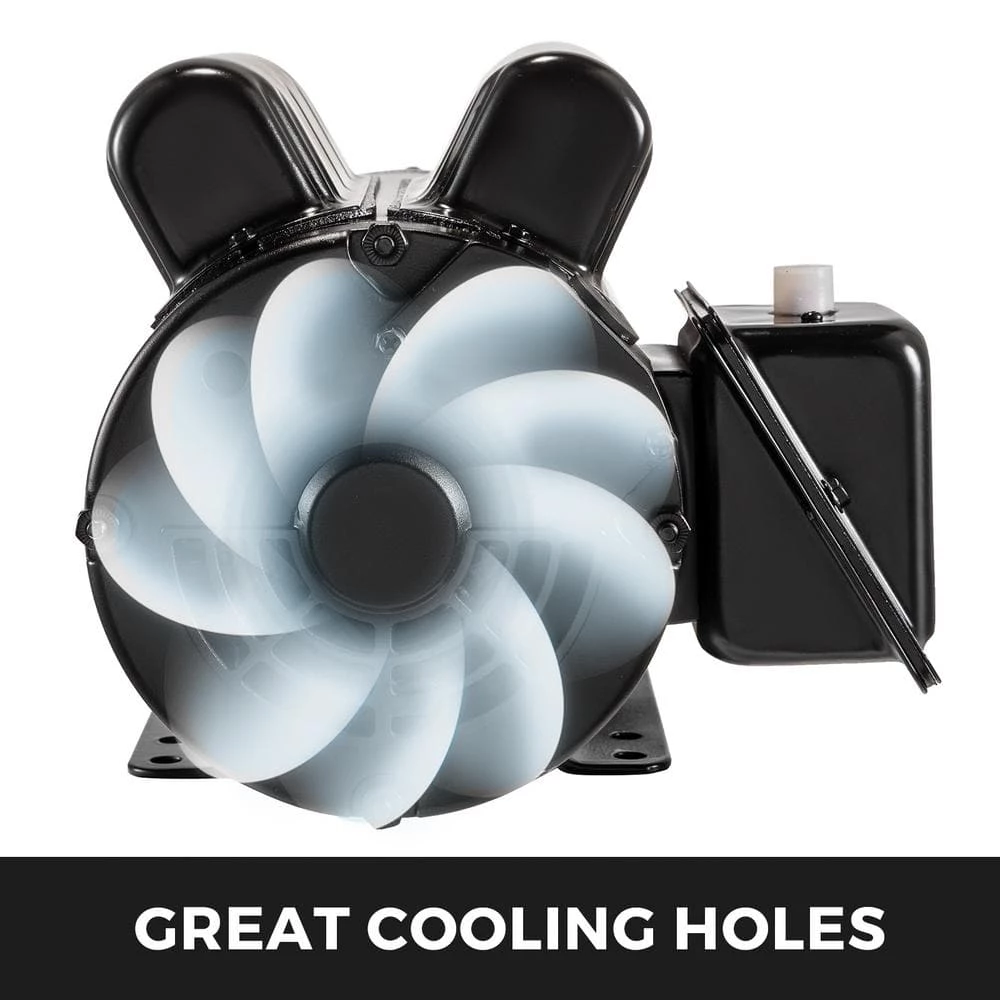

• Fast heat dissipation: the air compressor motor has multiple heat dissipation holes to have excellent heat dissipation performance, it can prevent foreign objects from being caught in the motor

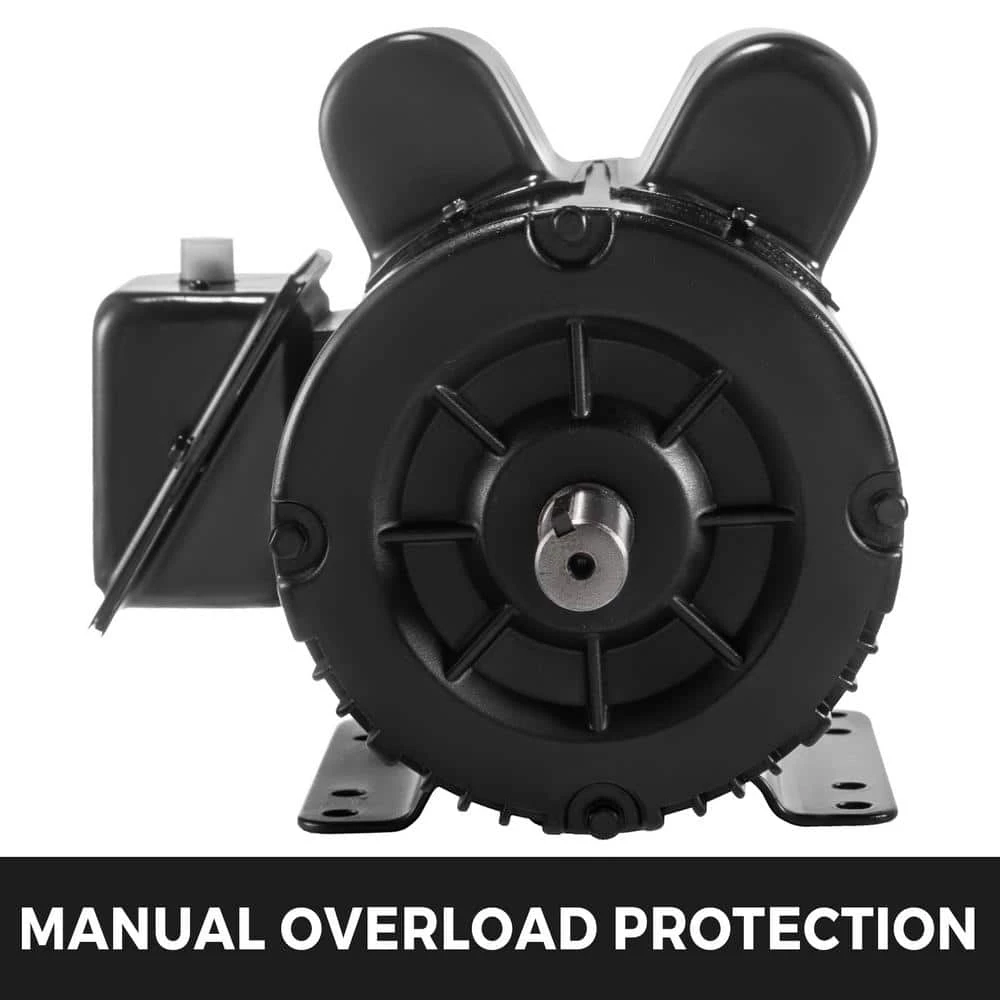

• Manual overload protection: the heavy-duty electric motor adopts gasketed capacitor housing and conduit boxes to protect all environments, and the low-temperature manual overload protector protects against extreme overload

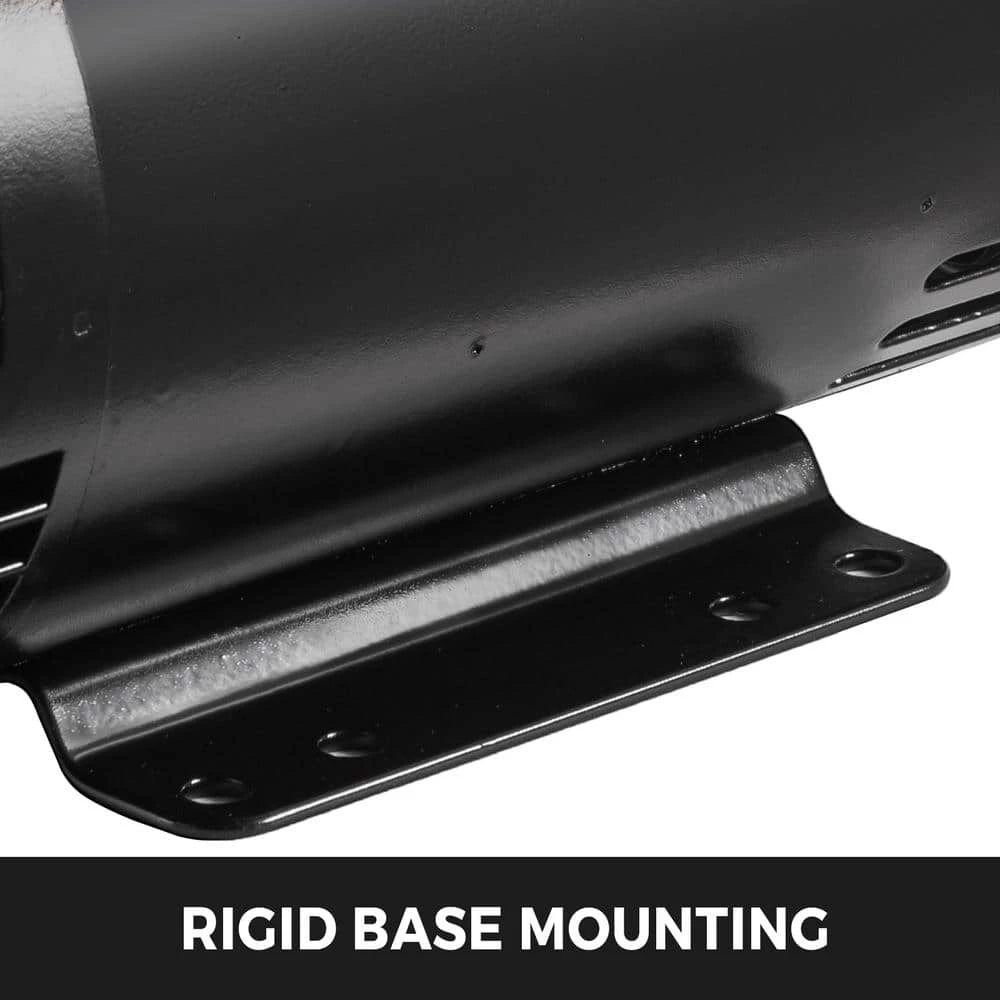

• Mounting bracket included: robust mounting bracket in the package is used to enlarge the electric compressor motor’s stability and reduce any friction, the ball-bearing system is also applied for multiple applications

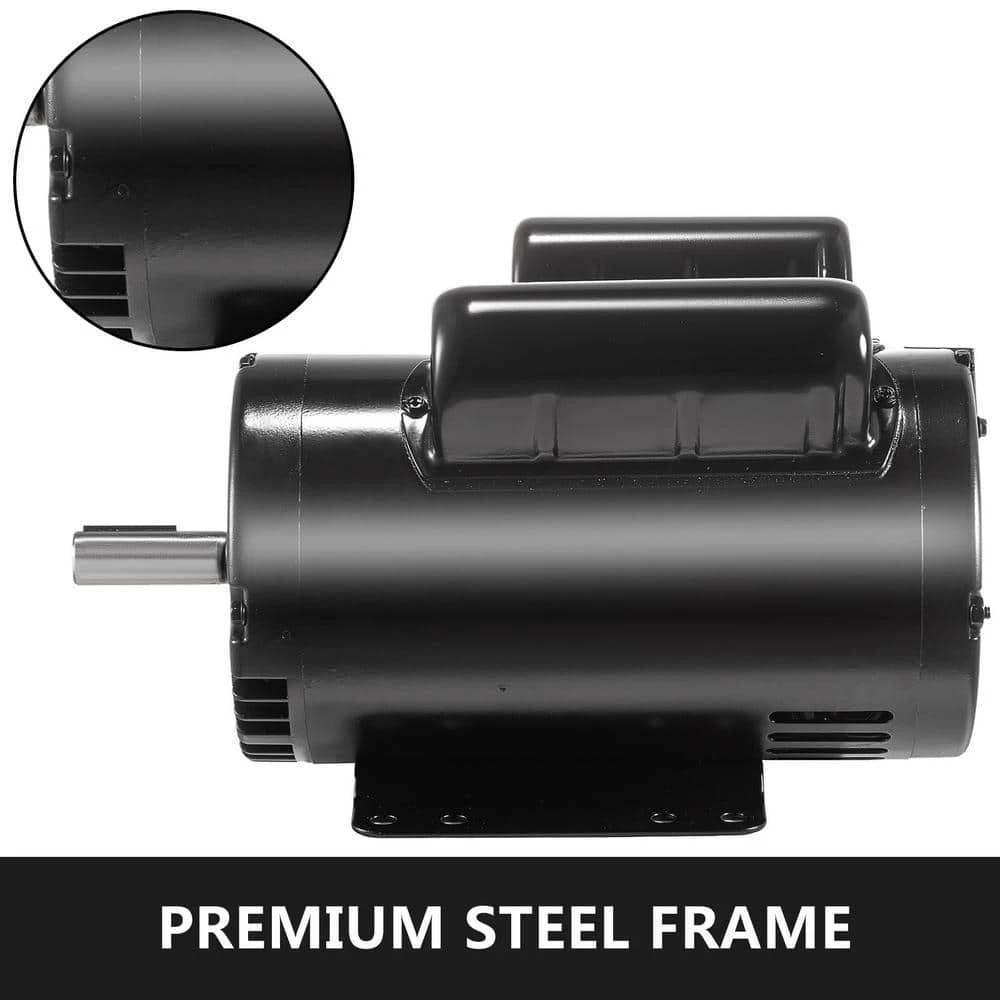

• Material: steel, output power: 5 hp, single phase
• Voltage: 208-230 Volt, 60 HZ, AMPS: 14.4 Amp – 15.9 Amp
• Maximum speed: 3450 RPM, frame: 143/5 T, service factor: 1
• Shaft diameter: 7/8 in. keyed shaft, shaft length: 2.36 in.
• Enclosure type: ODP, IP rating: IP23, mounting type: rigid
• Reversible/non-reversible: non-reversible, AC motor type: induction motor

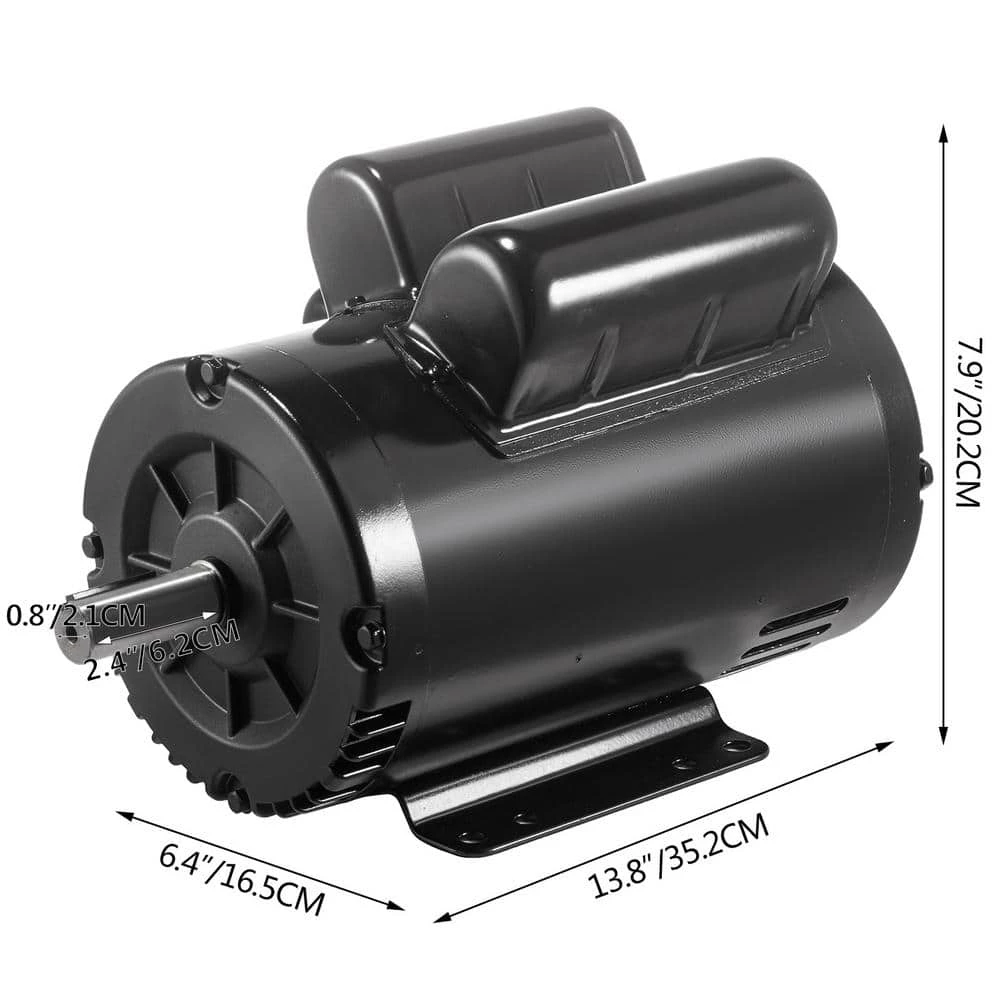

• Maximum ambient temperature: 40°, motor size (L x W x H): 14.17 in. x 6.3 in. x 8.27 in.
• Package content: 1 x 5HP motor compressor duty
