3 HP Electric Motor Single Phase AC Motor 3450 RPM 60 Hz 56 Frame SPL Rot-CCW Air Compressor Motor, 115/230 Volt by VEVOR

The VEVOR AC electric motor is an electrical machine that converts AC electrical power energy into mechanical energy. The 2.2 KW Electric Motor for air compressor. A 115/230-Volt electric motor that turns at 3450 RPM. A single-phase motor that has a rigid base and 5/8 in. keyed shaft. It is a 3 HP SPL electric motor that is commonly used for home and small shop air compressors.

• AC electric motor: the compact and small-sized AC motor features output 3 HP, 56 frame and single-phase, easy to carry, the rated speed: 3450 RPM to be with high working efficiency, shaft diameter: 5/8 in., shaft length: 1.88 in., this motor is non-reversible-rotation: CCW-Counter clockwise rotation when viewed from the shaft end
• Steel housing: the induction motor shell is made of steel, the robust and reliable metal material protects the motor, the appearance is smooth, and the frame is stable, protecting the internal circuit from thermal overload

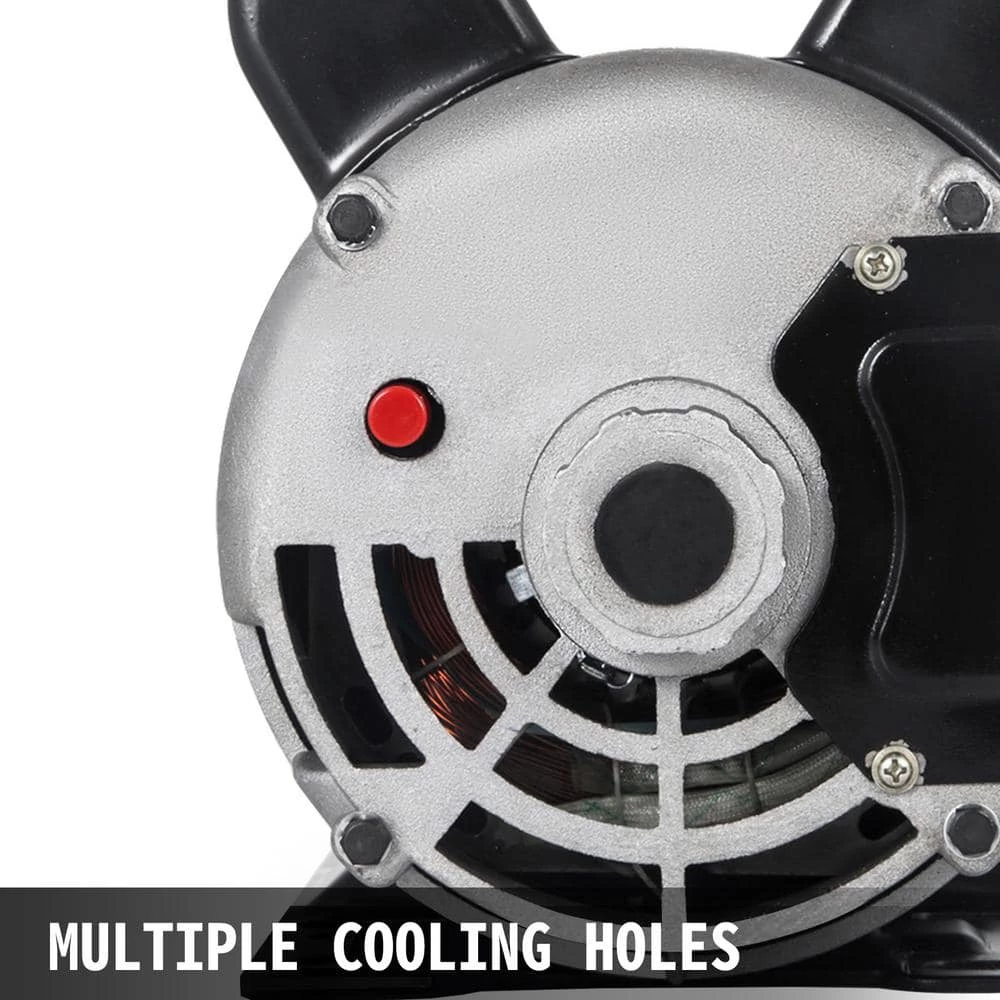

• Fast heat dissipation: the pool pump motors have multiple heat dissipation holes, even in dusty or damp environments, quickly reducing the running temperature, increasing winding lifetimes

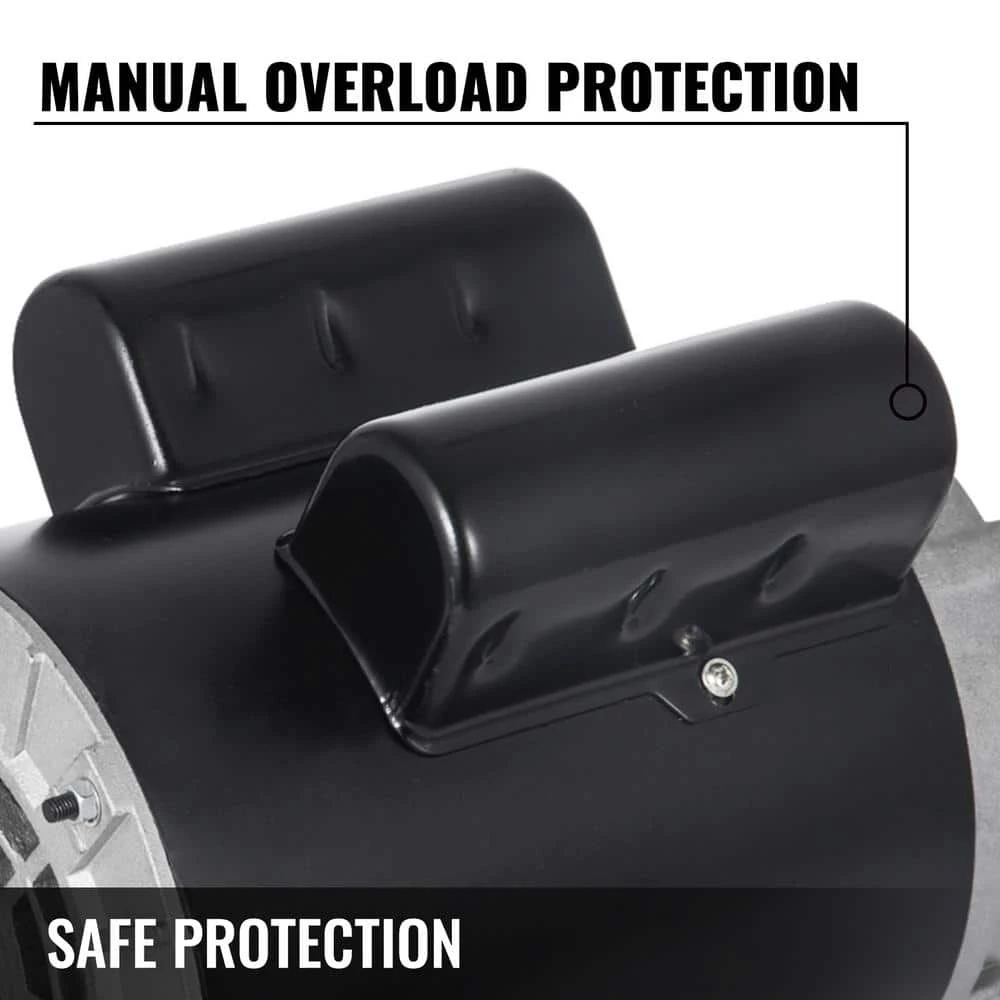

• Manual overload protection: the heavy-duty electric motor is protected with capacitor housing and conduit boxes, a low-temperature manual overload protector protects against extreme overload
• Multiple application: electric motors are commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields, for instance, the matching of water pumps, agricultural machinery, etc.

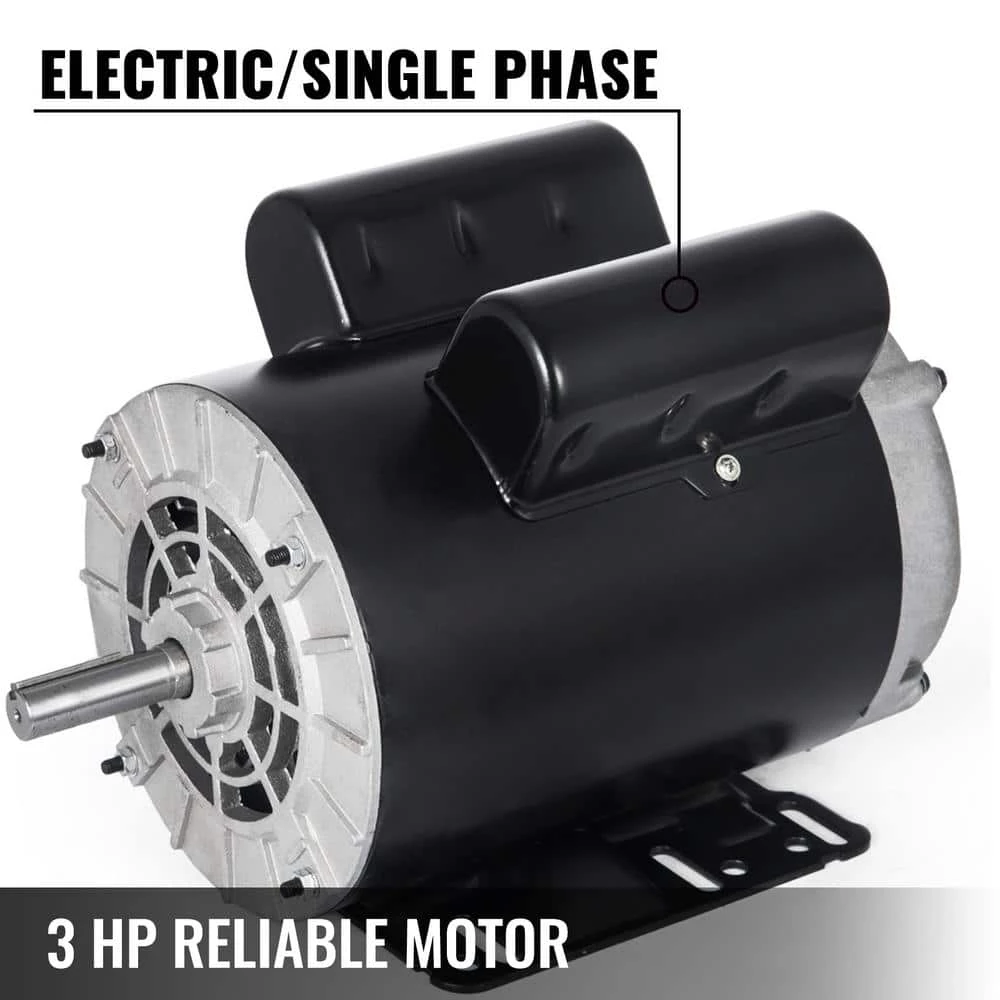

• Phase: single phase, 2 pole, input: 2.2 KW, horsepower: 3 HP
• Voltage: 115 Volt/230-Volt, amperage: 18/9 fl amps, frequency: 60 Hz

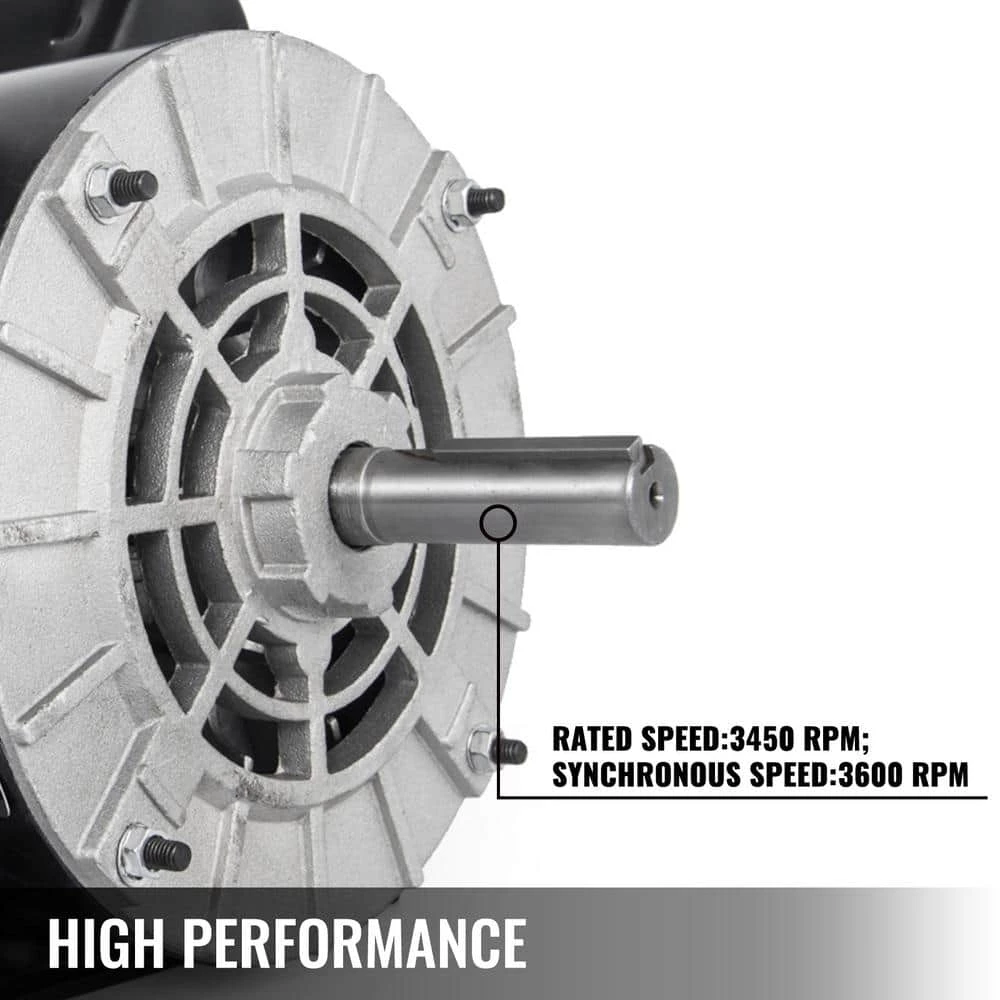

• Rated speed: 3450 RPM, synchronous speed: 3600 RPM, frame: 56°C frame
• Shaft diameter: 5/8 in. keyed shaft, shaft length: 1.875 in.
• Rotation: CCW (counter clockwise rotation when viewed from the shaft end, this moter is not reversible
• Service factor: 1.15, efficiency: 80 %
• Package content: 1 x electric motor
