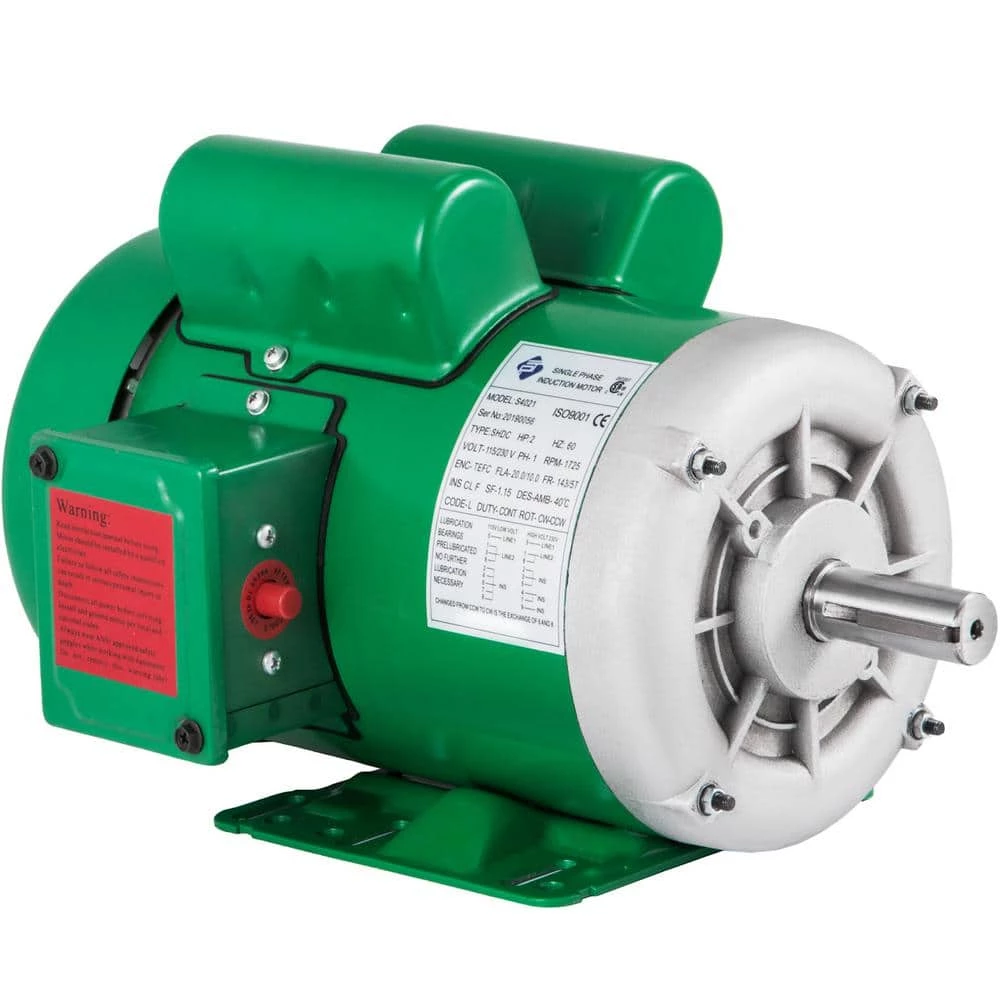

2 Hp Electric Motor 143/5T Frame Single Phase Motor 1800 RPM 60 Hz Air Compressor Motor Suit for Agricultural Machinery by VEVOR

Here we offer you the VEVOR new farm duty motor. High Starting Torque, Rigid Base. Lubricated with Low Temperature grease. 115-Volt/230-Volt single-phase motor delivers high torque to withstand tough agricultural applications.

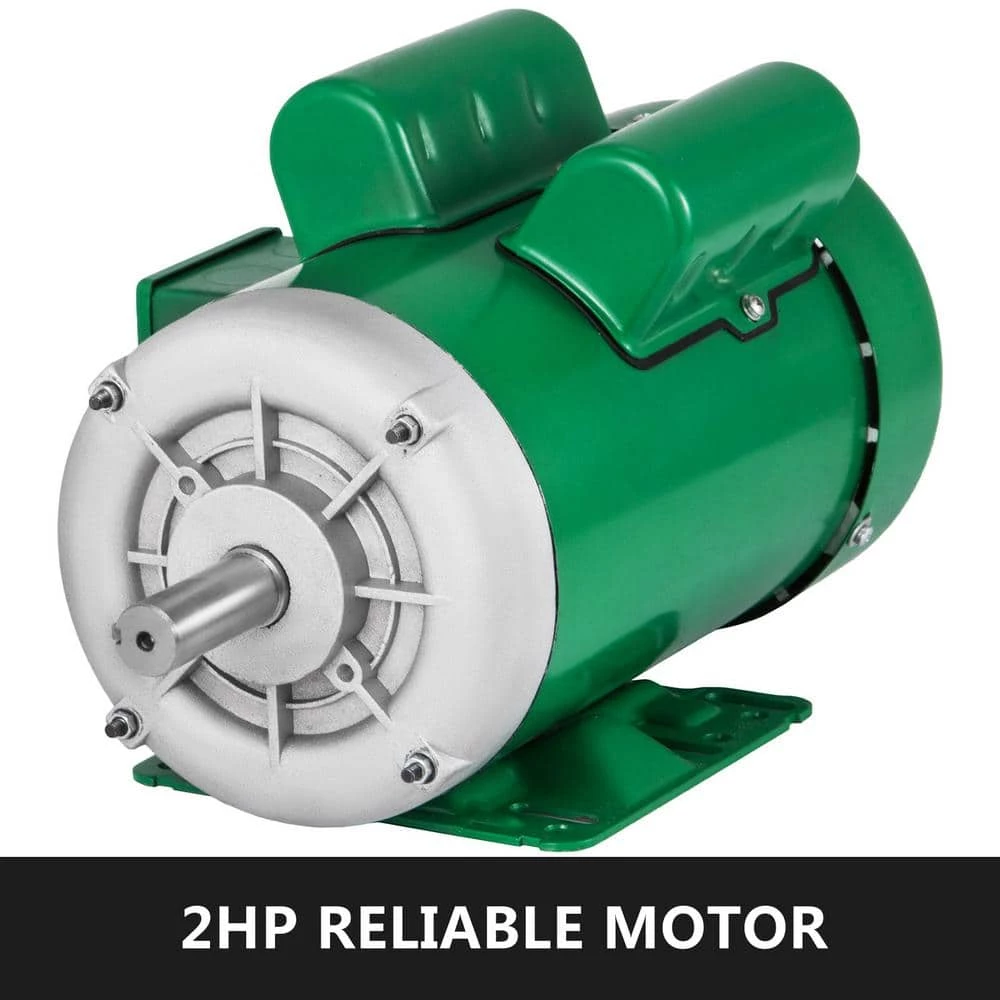

• Powerful AC motor: compact and small sized AC motor featuring output 2 HP, 145 T frame and single phase, robust and reliable metal material shell protect the inner circuit from thermal overloading
• High speed 1745 PM: the farm duty motor designed with rated speed: 1800 RPM to be with high working efficiency, runs with 2 HP, shaft diameter: 7/8 in. shaft length: 2.36 in.

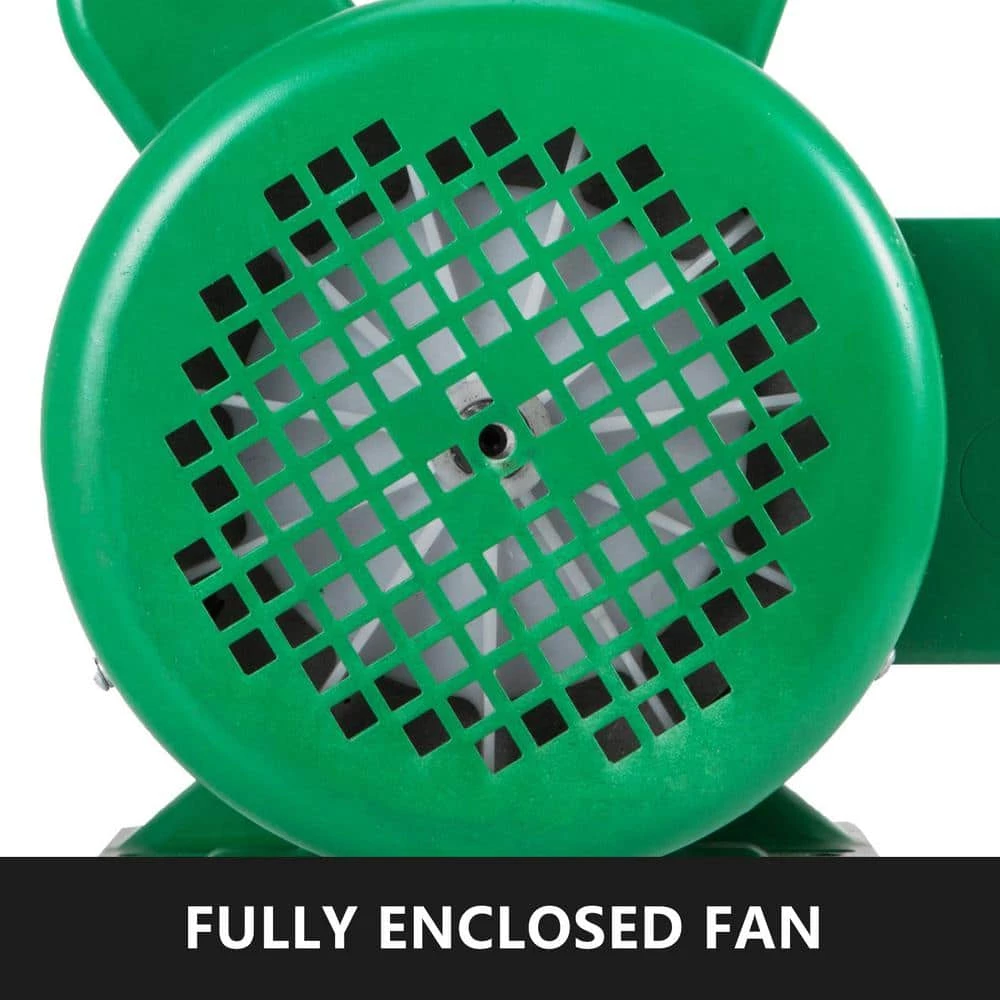

• Totally enclosed fan: big fan at one end cools the motor in hours’ running, even in dusty or damp environments, reducing energy costs or overheads, reducing running temperature, increasing winding lifetimes

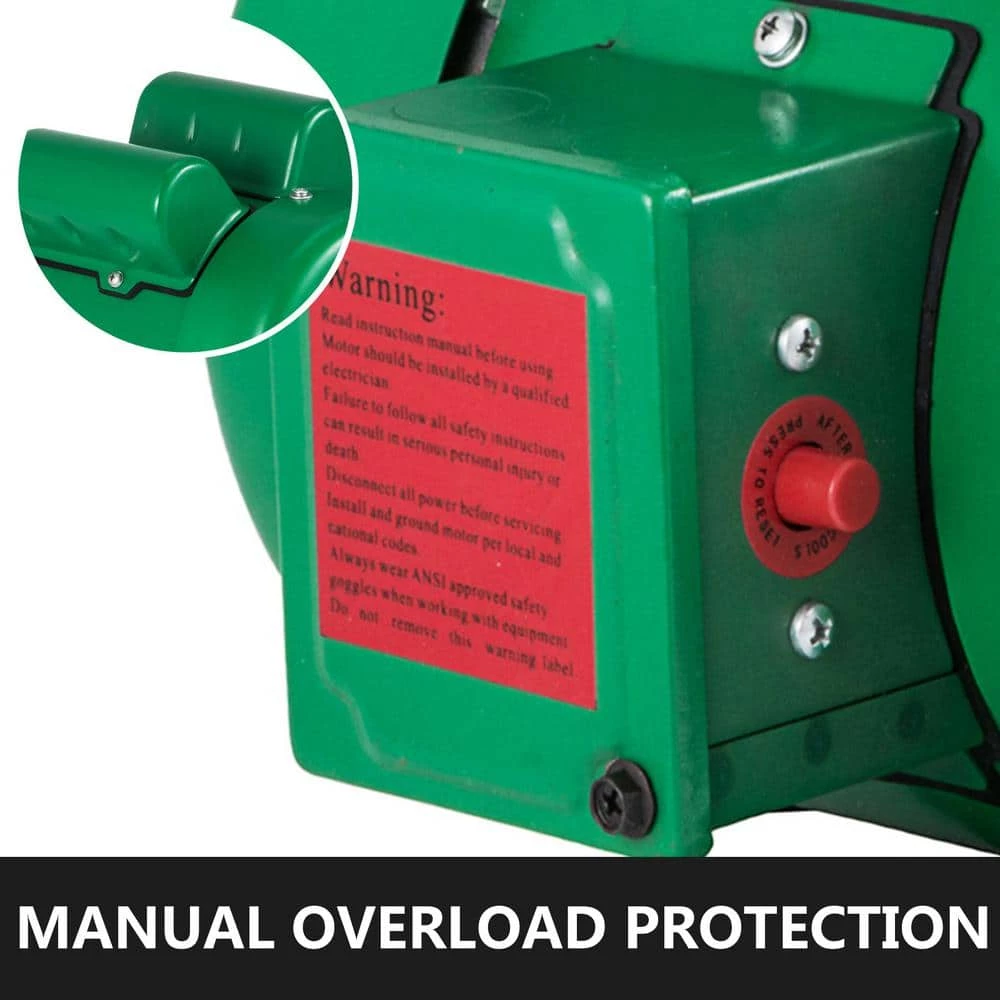

• Manual overload protection: gasketed capacitor housing and conduit boxes provide protection in all environments, low temperature manual overload protector protects against extreme overload
• Mounting bracket included: robust mounting bracket in included in the package, used for enlarging motor’s stability and reducing any friction, ball bearing system is also applied for multiple applications

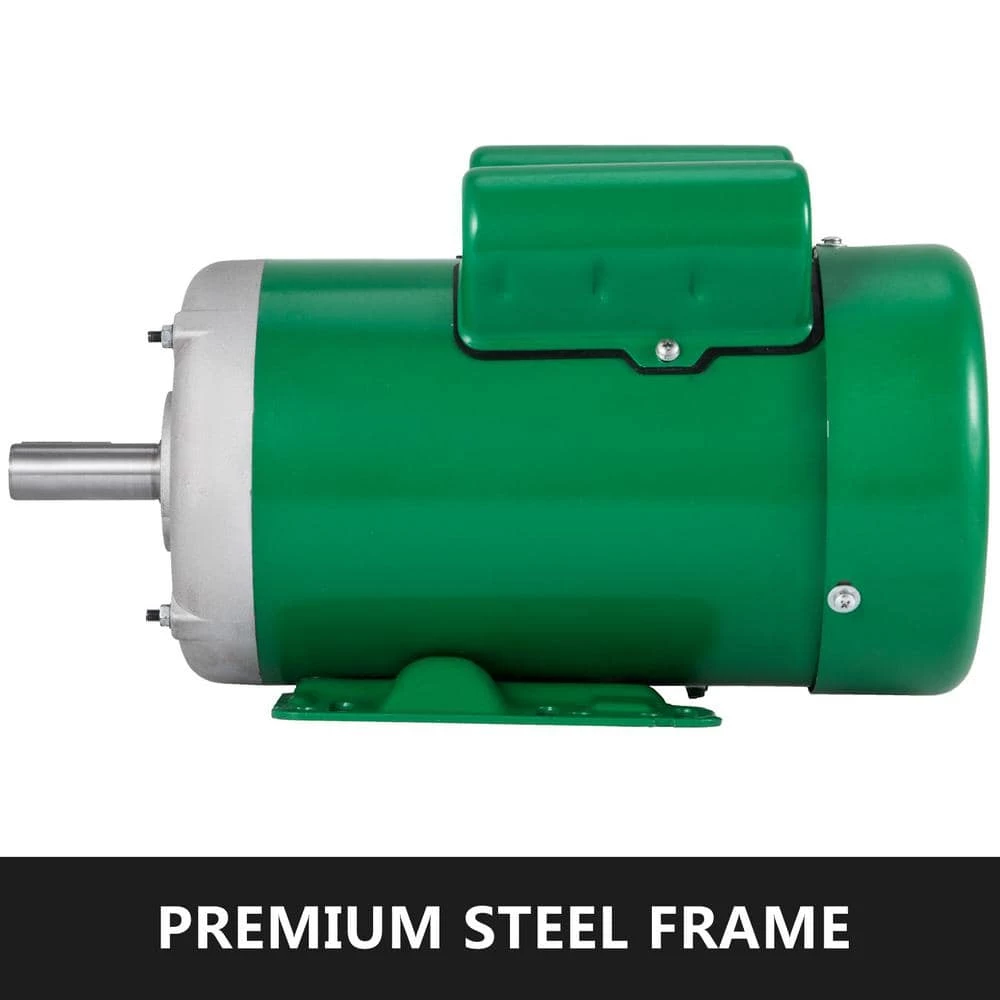

• Material: steel, rated load (HP): 2 HP, AC phase: single phase
• Voltage: 115-Volt to 230-Volt, current type: AC, AMPS: 15.8/8.3 Amp, SF AMPS: 19 Amp/9.6 Amp

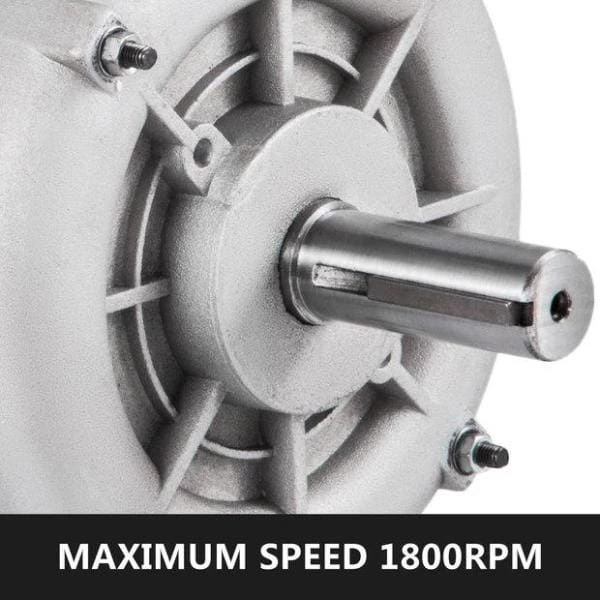

• AC frequency rating: 60 Hz, speed: 1745 RPM, maximum speed: 1800 RPM
• Frame: 145 T, service factor 1.15, shaft diameter: 7/8 in., shaft length: 2.36 in.
• Maximum ambient temperature: 40°, reversible/non-reversible: reversible
• Enclosure type: TEFC, insulation clas: F (maximum 311 °F)

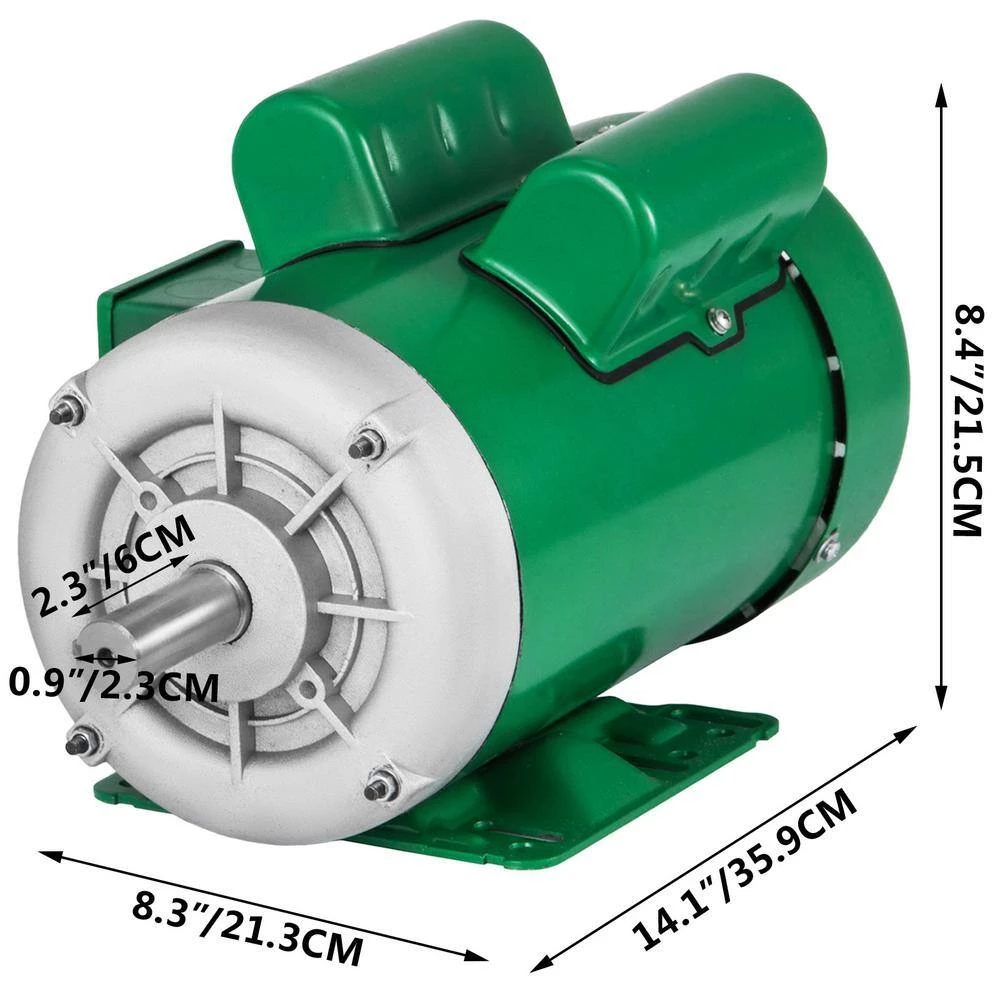

• Nema: L, code: J, duty: cont, motor size (L x W x H): 14.17 in. L x 8.66 in. W x 8.66 in. H
• Package content: 1 x 2HP motor farm duty
