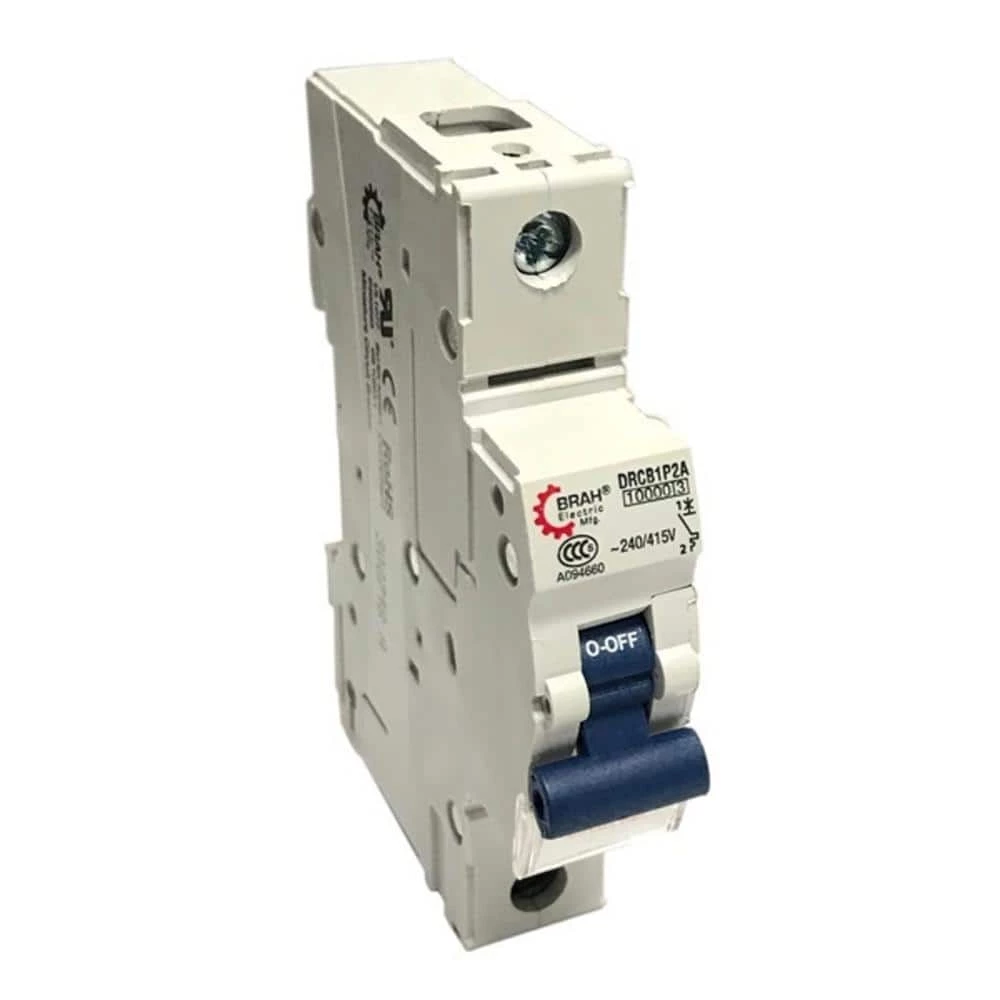

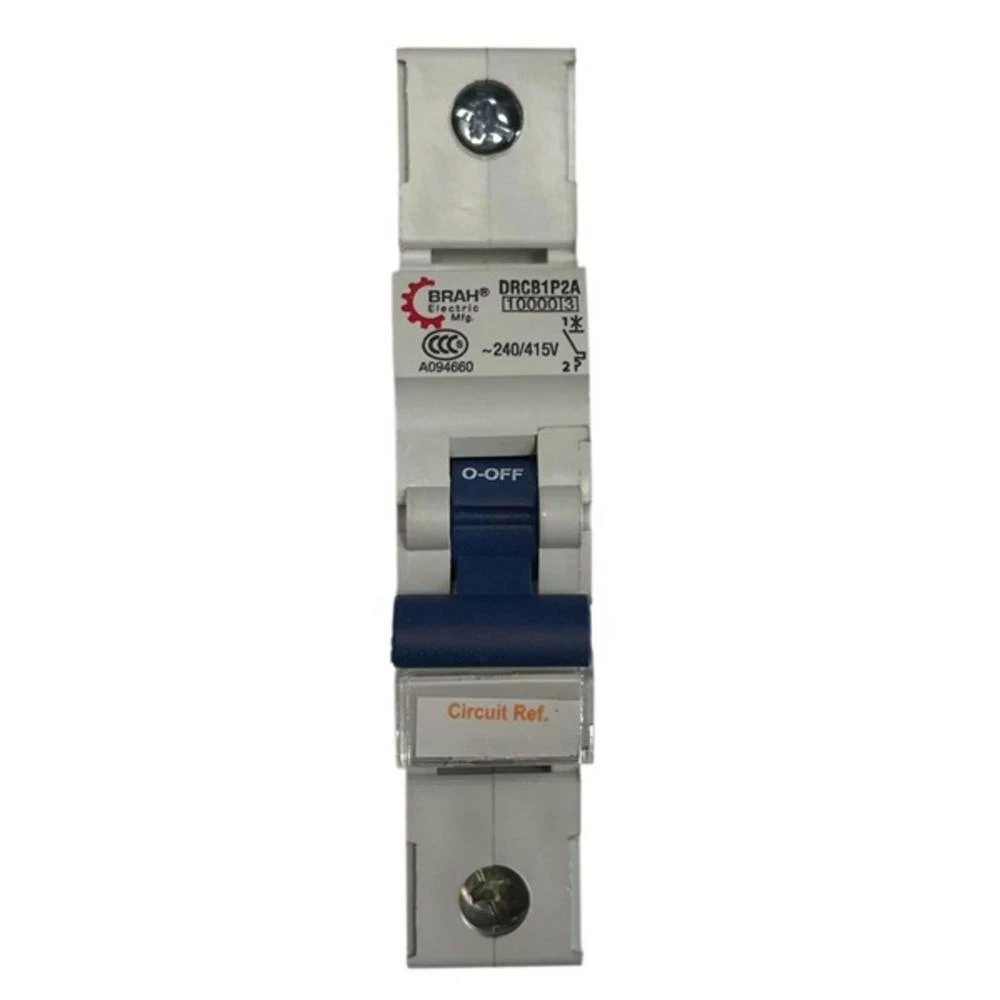

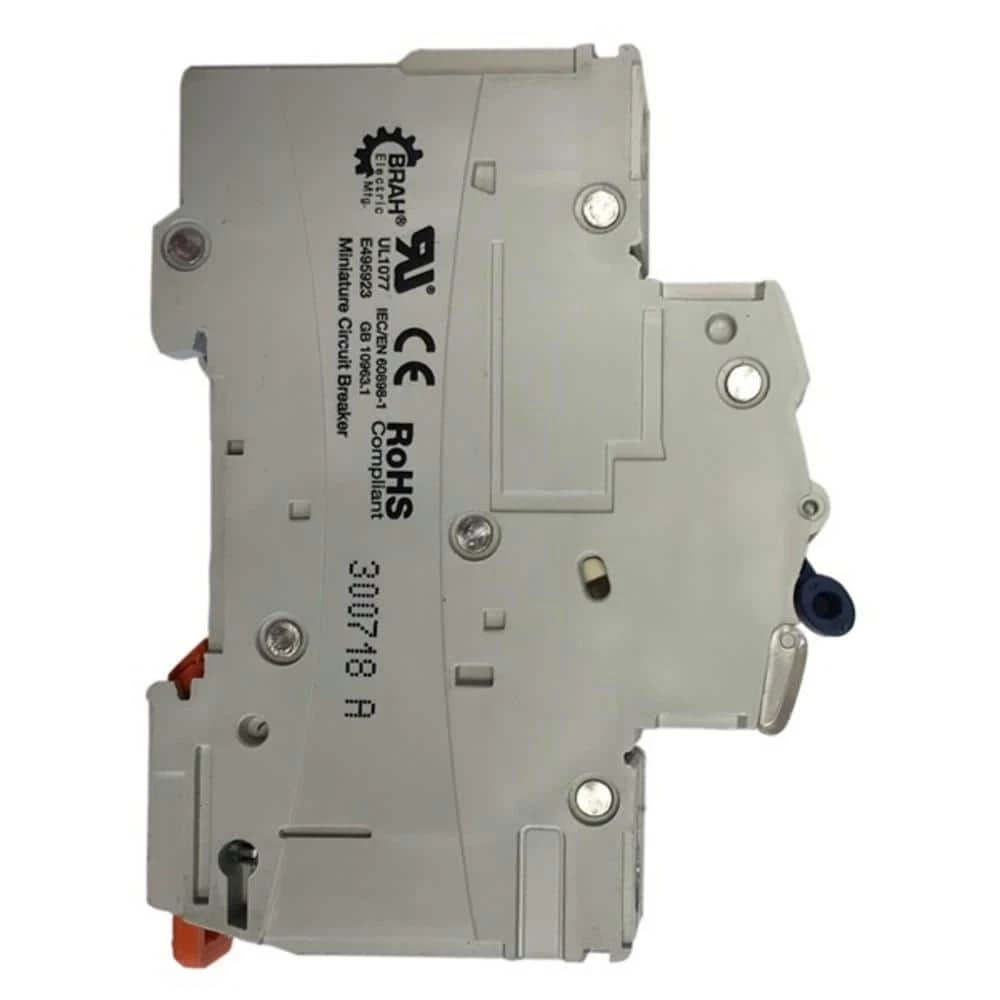

1-Pole 25 Amp Din Rail Circuit Breaker by Connecticut Electric
Original price was: $6.90.$4.76Current price is: $4.76.
- Multiple payment methods, 100% payment security
- The quality you expect, the service you deserve.
- Online assistance, always just a message away.
- Quality and Affordability Combined
DRCB1P25A, C-line series, type C, Single phase, 1 Pole, 25 Amp, 240/415-Volt AC. Miniature Circuit Breaker Din Rail Mount is normally used for high inductive loads where switching surges are high such as small motors and fluorescent lighting. Type C MCBs are preferred to handle higher value of short circuit currents. Therefore, these are suitable for highly inductive commercial and industrial installations.
- Trip free mechanism
- Padlocking facility
- High thermal capacity with deep serrations
- Low power consumption
| Breaker Type | Single Pole |
|---|---|
| Electrical Product Type | Breaker |
| Interruption Type | Standard Trip |
| Maximum Amperage (amps) | 25 |
| Mounting Type | Din Rail |
| Number of Poles | 1 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 0.25 lb |
| Returnable | 90-Day |
| Voltage (volts) | 240/415 |
| Certifications and Listings | UL Recognized |
| Manufacturer Warranty | 2 Years |
| Product Depth (in.) | 3.75 in |
| Product Height (in.) | 3 in |
| Product Width (in.) | 0.75 in |
