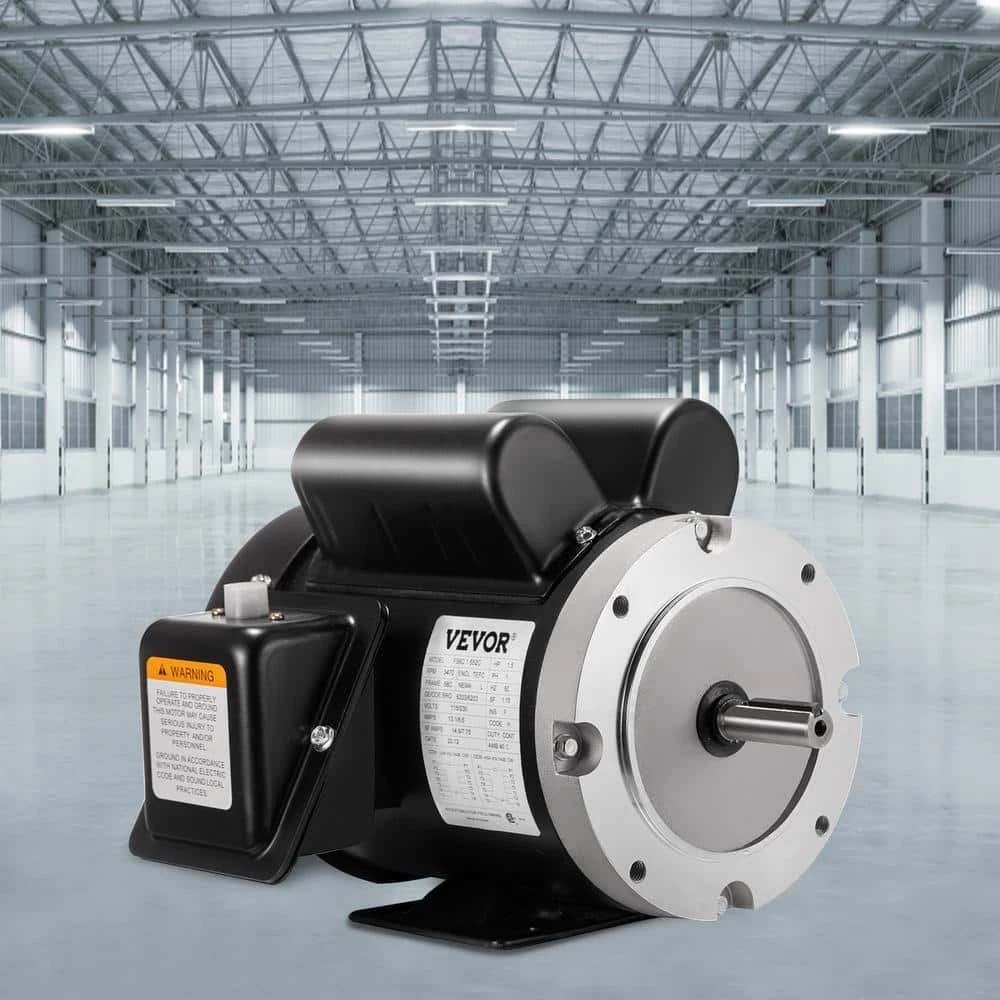

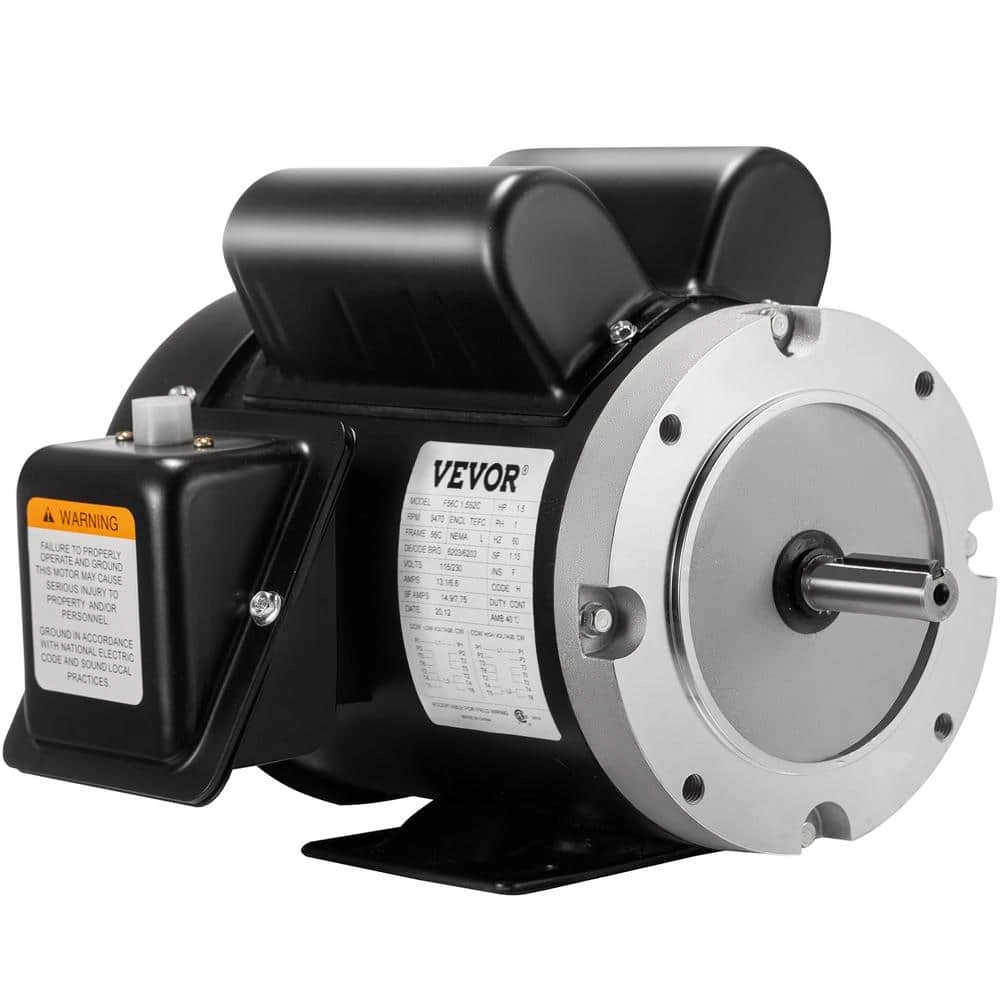

1.5 HP Electric Motor 3450 RPM Reversible Single Phase 56C Frame 5/8 in. Shaft Diameter Air Compressor Motor by VEVOR

The listing is about VEVOR electric motor 121556C, an electrical machine that converts electrical energy into mechanical energy. It is a 1.5 hp SHDC electric motor that is commonly used to match water pumps, agricultural machinery, and general equipment. A 115/230-Volt electric motor that turns at 3450 RPM. A single-phase motor that has a rigid base and 5/8 in. keyed shaft.

• 1.5 HP electric motor: the compact and small-sized AC motors feature output 1.5 HP, 56C frame, and single phase, gasketed capacitor housing and conduit boxes protect all environments

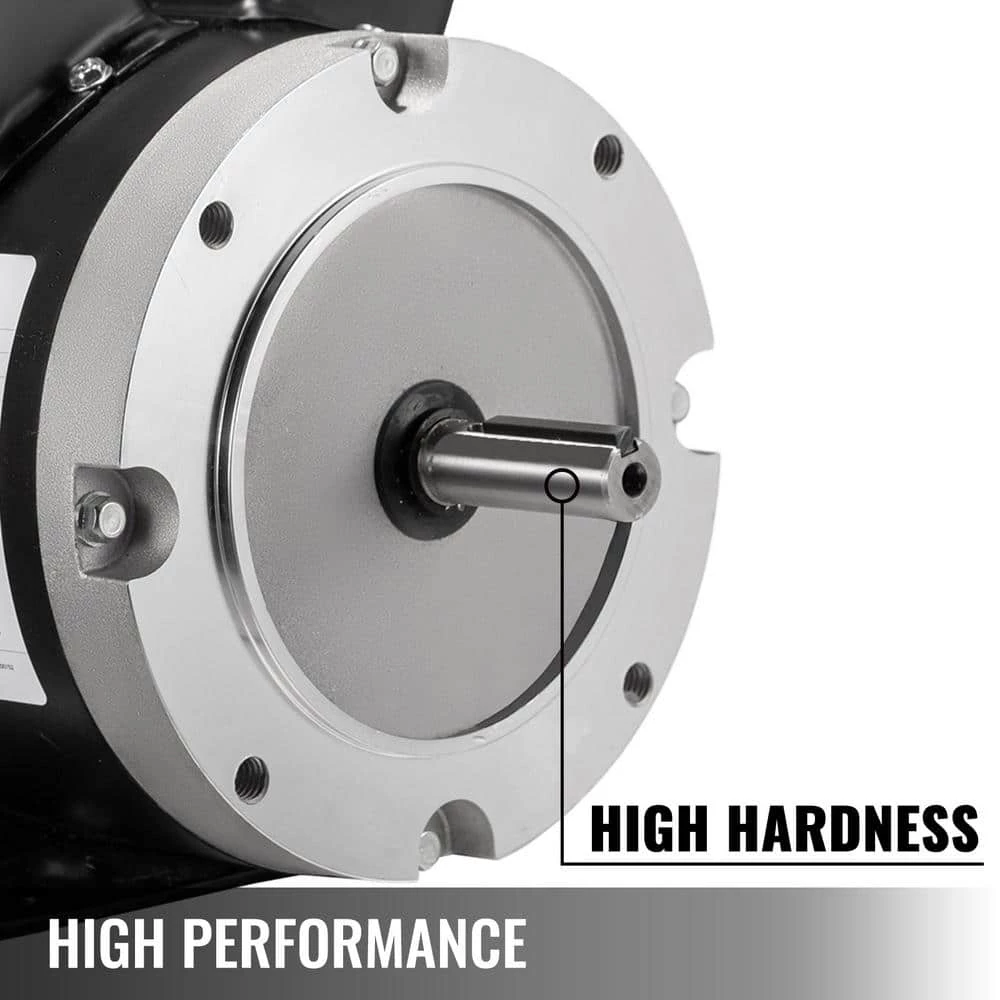

• Working efficiency: the electric motor 56C can run at the maximum speed 3450 RPM, high working efficiency, voltage: 115/230-Volt 60 HZ, shaft diameter: 5/8 in., shaft length: 1.88 in. the upper hardness shaft is more durable

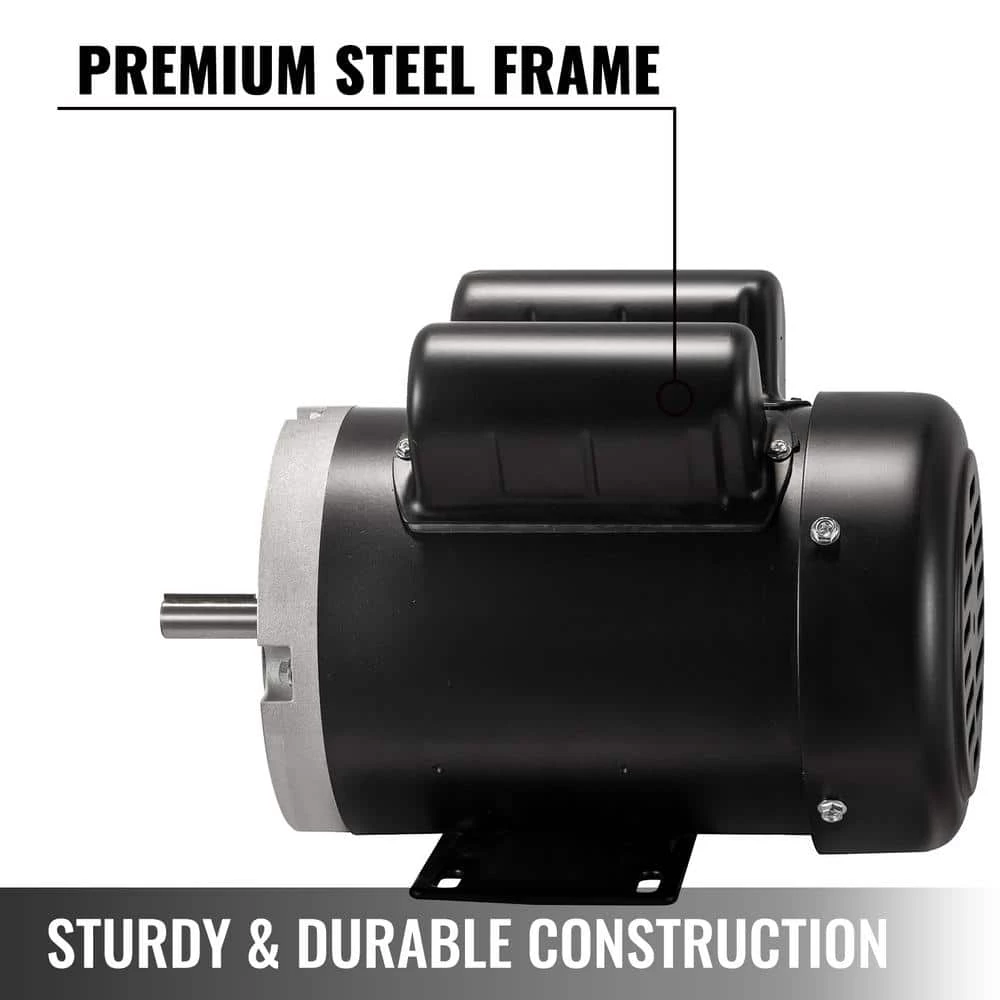

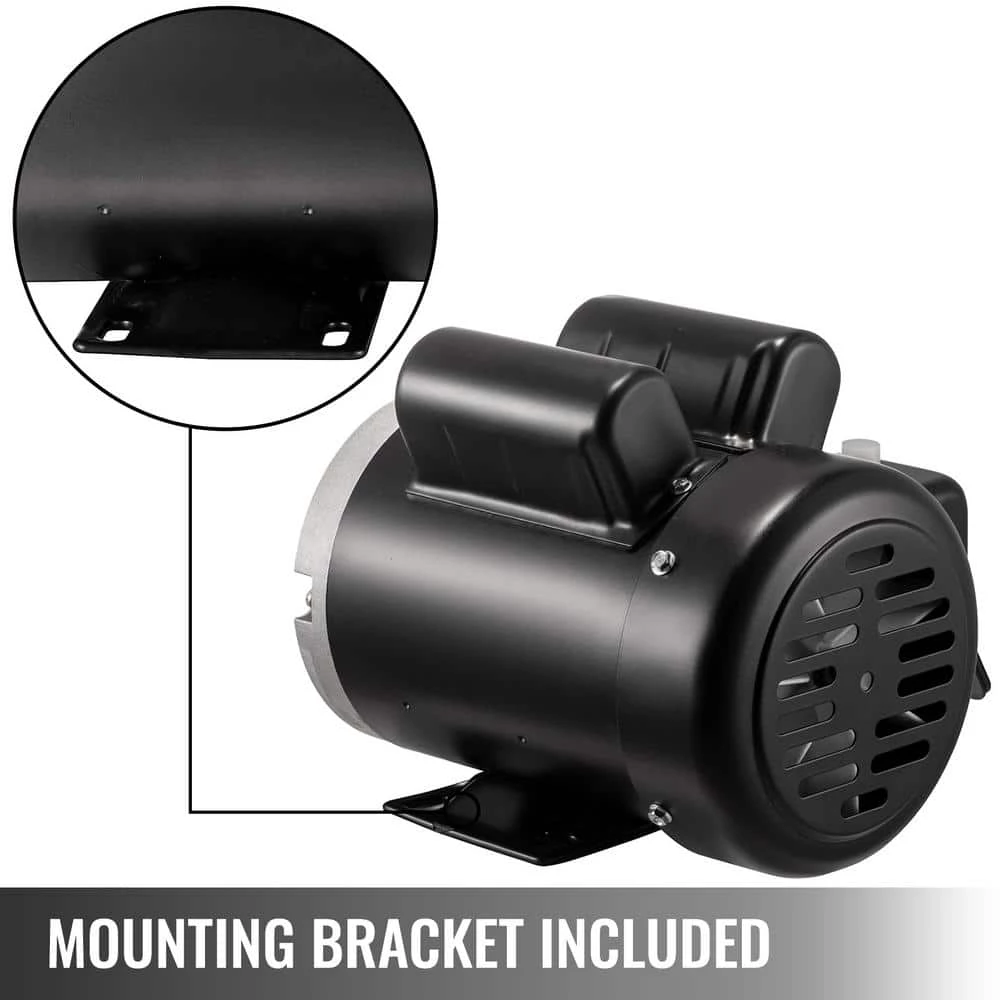

• Steel housing: the compressor duty motor is made of high-quality steel material, the firm and solid material can protect the engine well, and the smooth appearance is easy to clean, it includes the mounting bracket, and the bracket structure is stable and easy to use

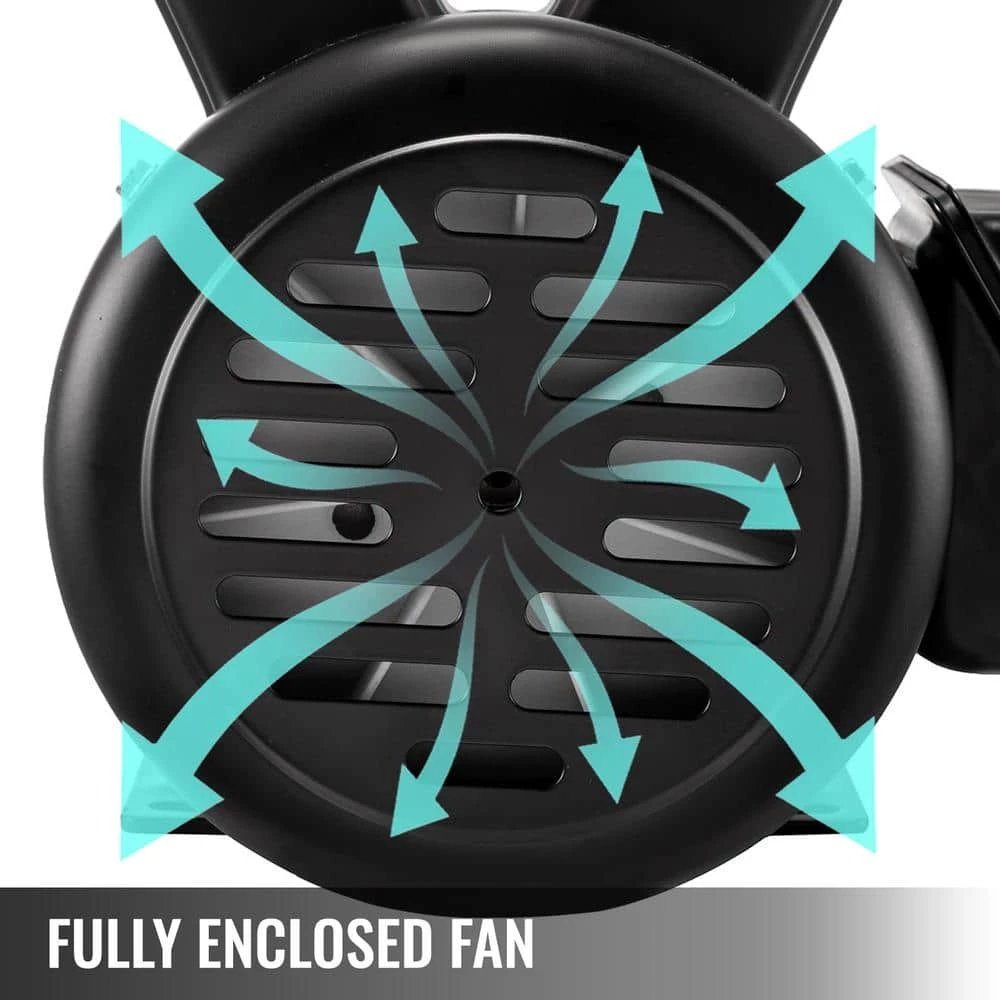

• High speed cooling fan: big fan at 1 end cools the motor in hours’ running, even in dusty or damp environments, reducing energy costs or overheads, reducing the running temperature, increasing winding lifetimes
• Multiple application: the electric motors are commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields, for instance, the matching of water pumps, agricultural machinery, etc.
• Phase: single phase, 2 pole, horsepower: 1.5 HP
• Voltage: 115/230-Volt, full load amps: 14.2/7.1 Amp, frequency: 60 Hz
• Rated speed: 3450 RPM, synchronous speed: 3600 RPM, frame: 56°C frame
• Shaft diameter: 5/8 in. keyed shaft, shaft length: 1.875 in.
• Rotation: CW-CCW, IP rating: IP55, service factor: 1.15
• Efficiency: 80%, ENC: TEFC, insulation class: F

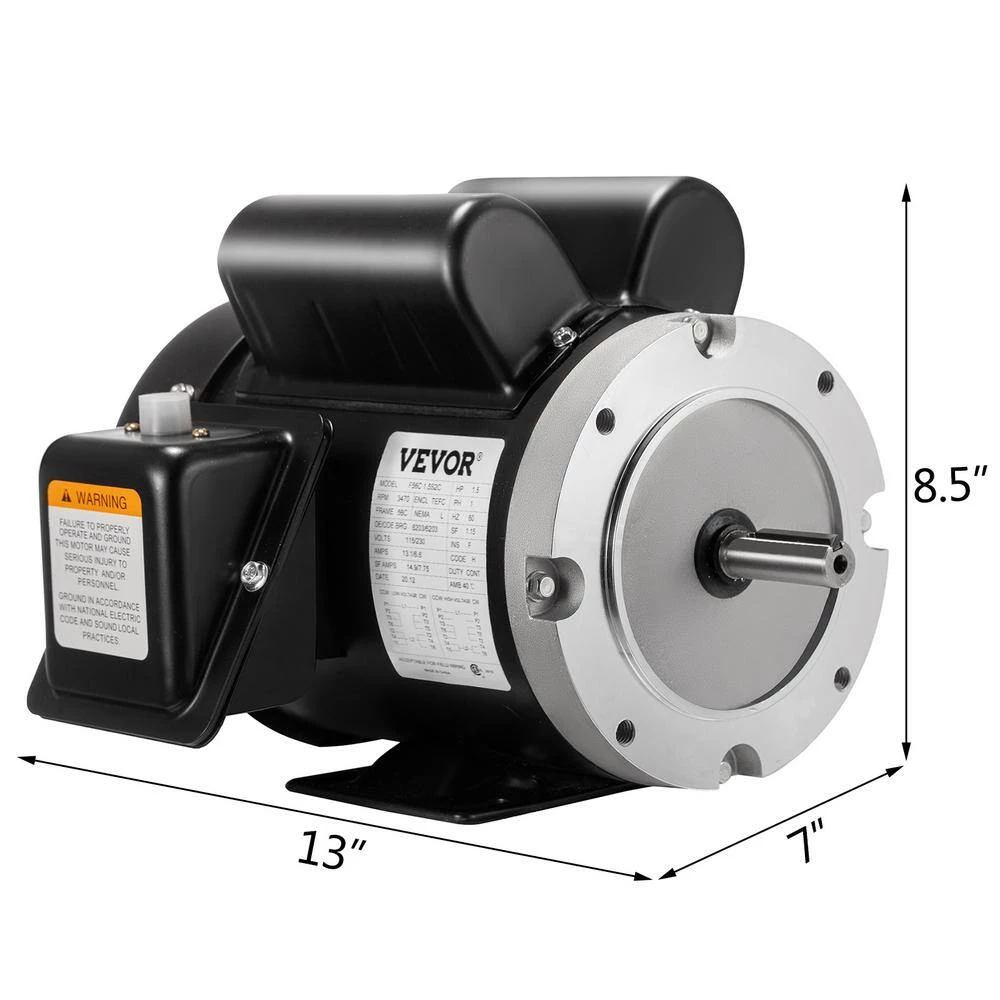

• Mounting type: rigid/flange installation, reversible/non-reversible: reversible, AC motor type: induction motor, motor size: 13 in. L x 7 in. W x 8.5 in. H
• Package content: 1 x electric motor
