1.5 HP Compressor Electric Motor 5/8 in. Shaft Diameter 3450 RPM Reversible Single Phase 56 Frame Air Compressor Motor by VEVOR

The VEVOR electric motor 121556 is an electrical machine that converts electrical energy into mechanical energy. The electric motor is commonly used to match water pumps, agricultural machinery, and general equipment. A 115/230 Volt electric motor that turns at 3450 RPM. A single-phase motor that has a rigid base and 5/8 in. keyed shaft.

• 1.5HP electric motor: compact and small-sized AC motor feature output 1.5 HP, 56 frame, and single phase, gasketed capacitor housing and conduit boxes protect all environments
• Working efficiency: the heavy-duty electric motor with a rated speed of 3450 RPM has high working efficiency, run at 1.5 HP, shaft diameter: 5/8 in. keyed shaft, shaft length: 1.875 in.

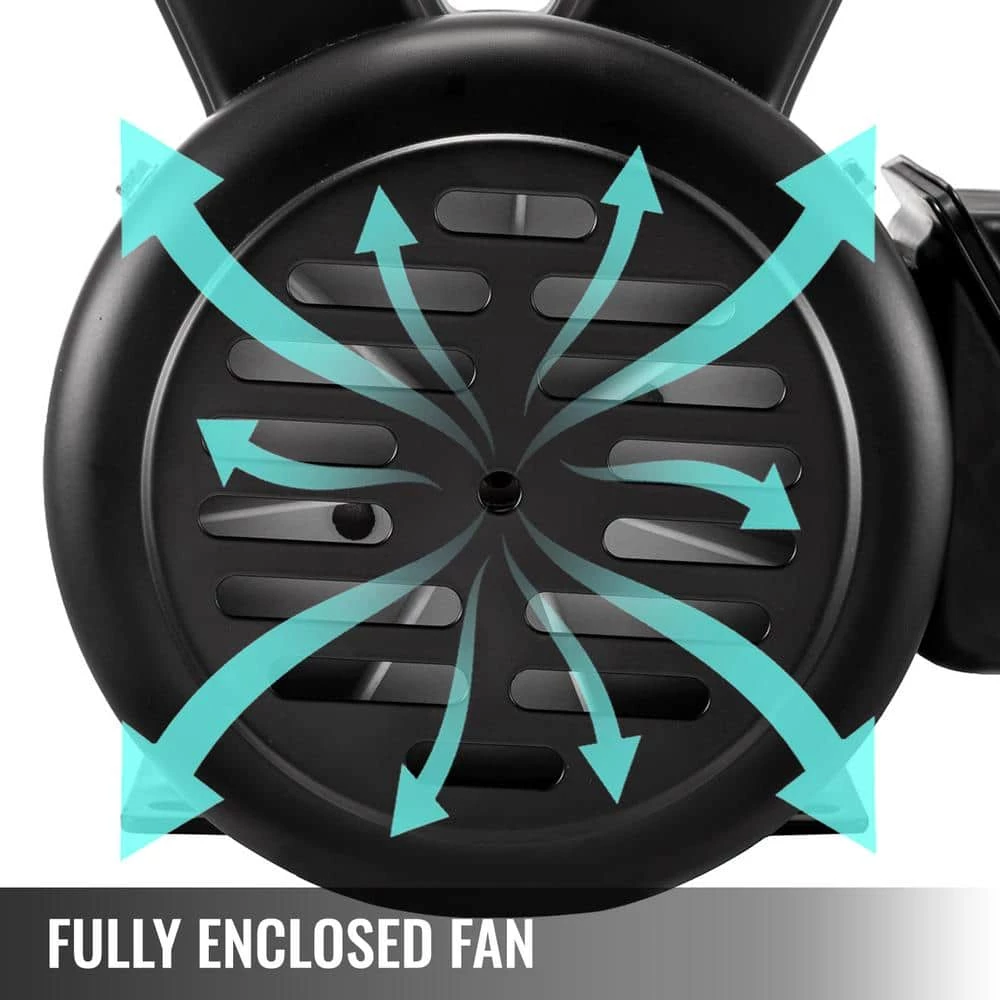

• High speed cooling fan: big fan at one end cools the motor in hours’ running, even in dusty or damp environments, reducing energy costs or overheads, reducing the running temperature, increasing winding lifetimes

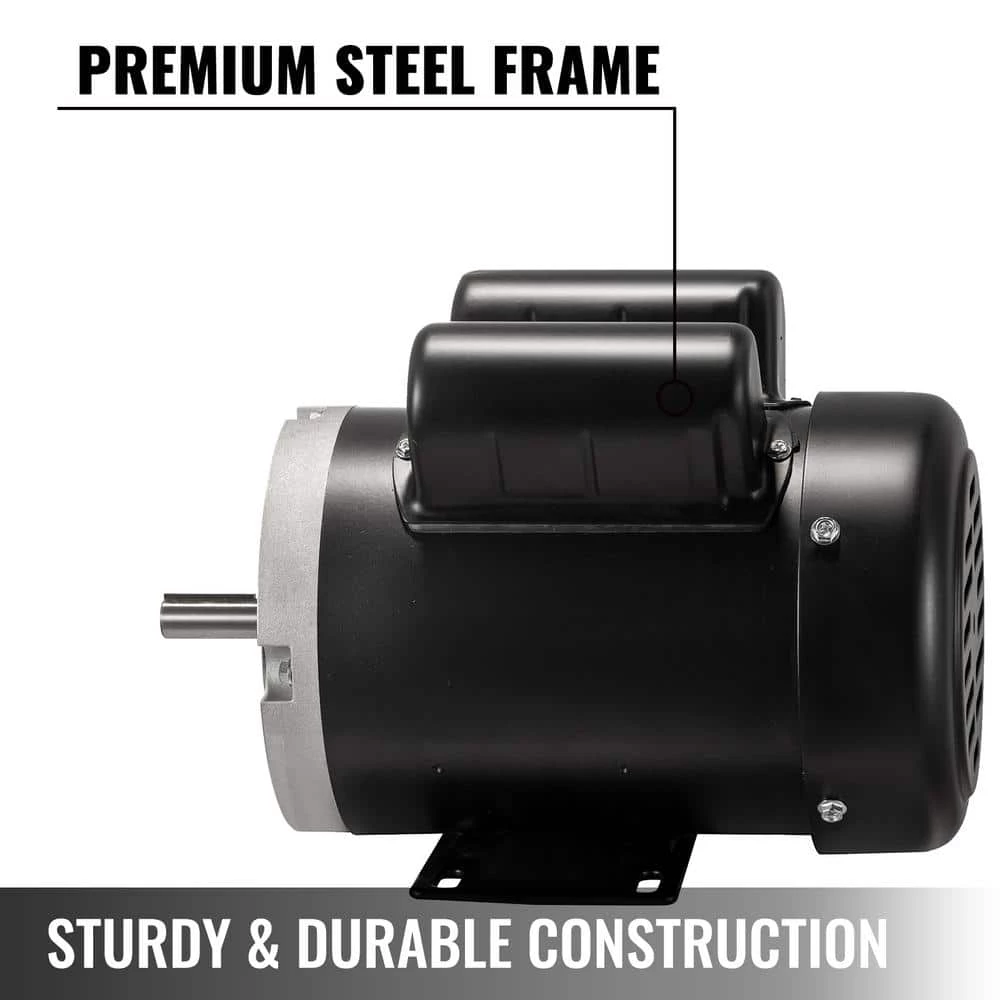

• Steel housing: the electric motor is made of high-quality steel, robust and reliable materials can protect the motor well, smooth appearance and stable frame
• Multiple application: 1.5 hp electric motors are universal and commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields, for instance, the matching of water pumps, agricultural machinery, etc.
• Type: SHDC, phase: single phase, 2 poles
• Horsepower: 1.5 HP, voltage: 115/230-Volt, full load Amps: 14.2/7.1 Amp
• Frequency: 60 Hz, rated speed: 3450 RPM, synchronous speed: 3600 RPM

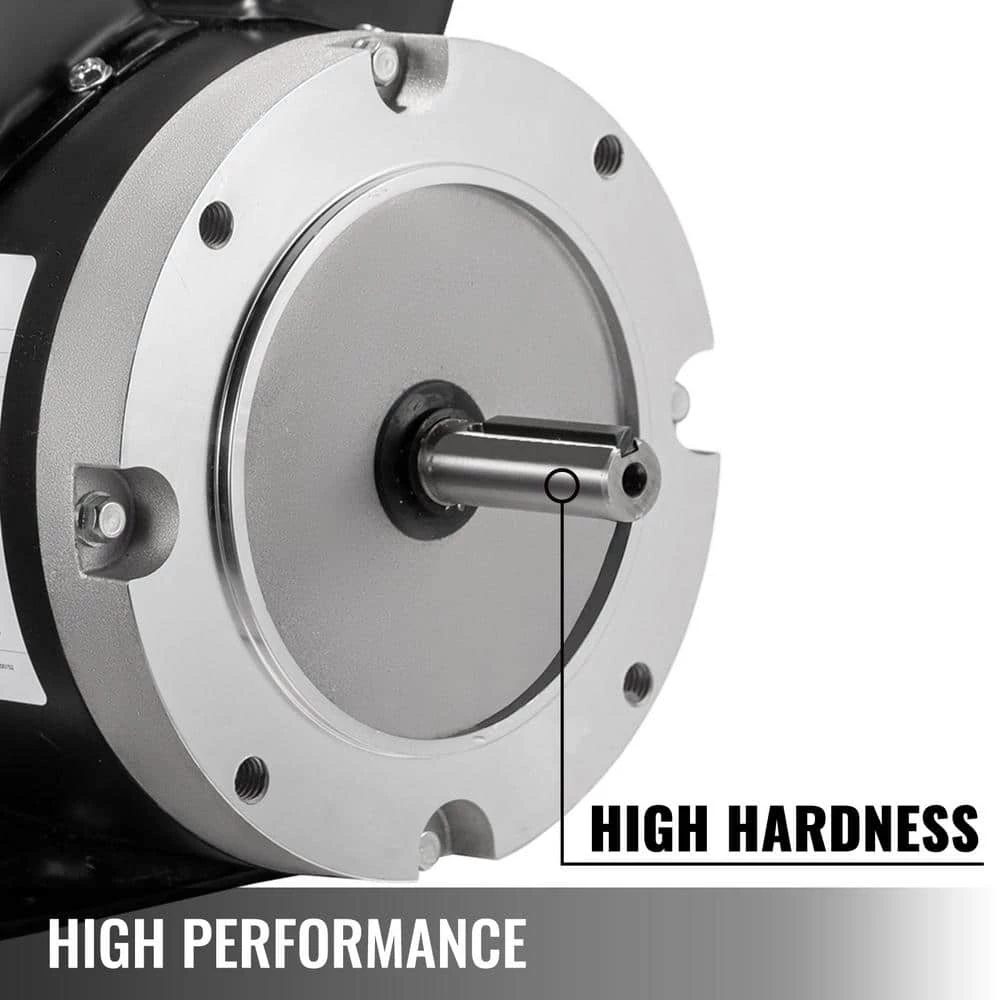

• Frame: 56 frame, shaft diameter: 5/8 in. keyed shaft, shaft length: 1.875 in.
• Rotation: CW-CCW, IP rating: IP 55, service factor: 1.15
• Efficiency: 80%, ENC: TEFC, insulation class: F

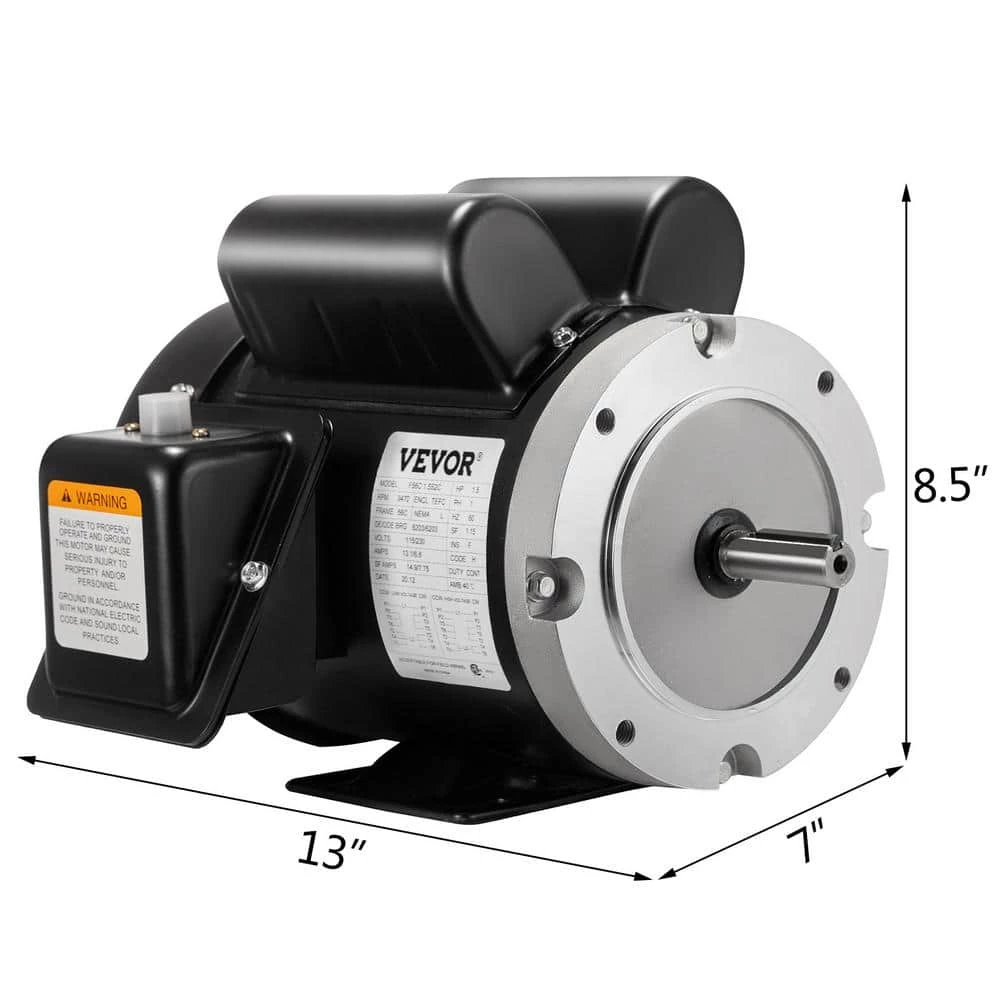

• Package size (L x W x H): 15.75 in. x 10.63 in. x 10.63 in., gross weight: 37.59 lbs.

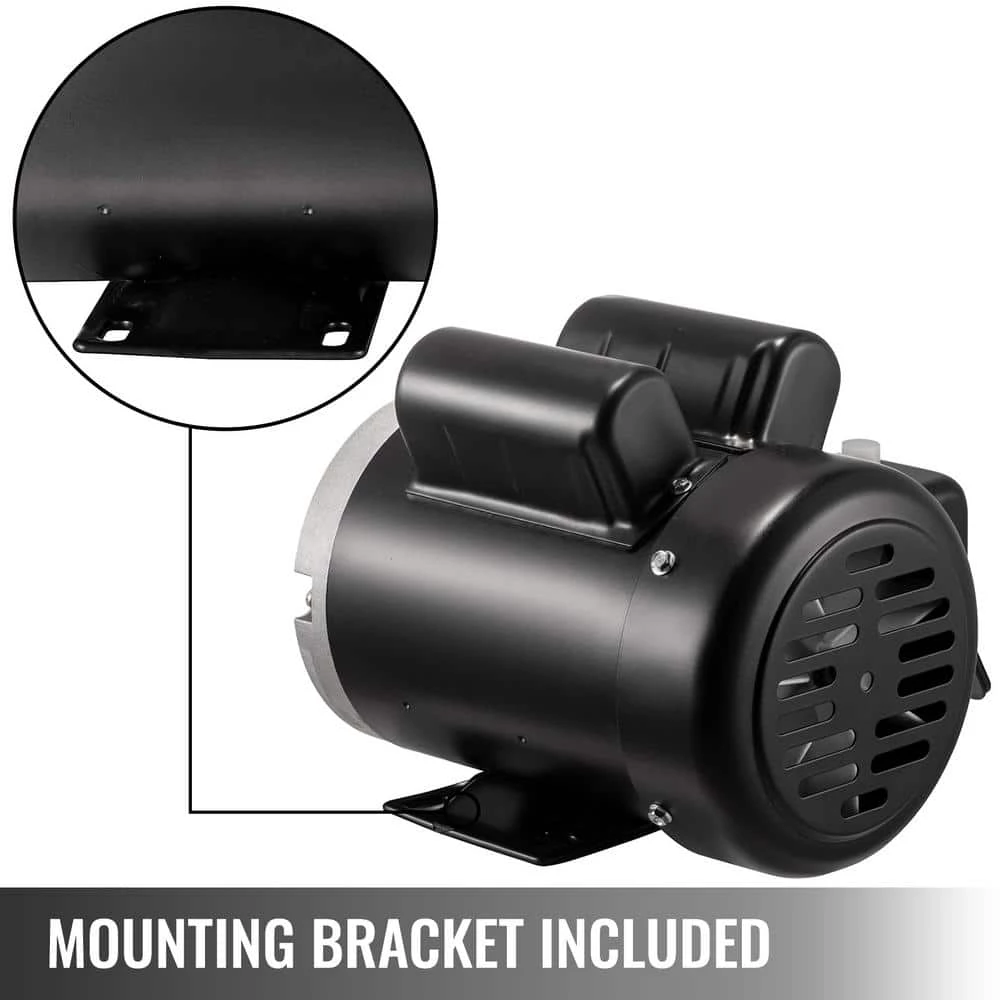

• Mounting type: rigid, reversible/non-reversible: reversible, AC motor type: induction motor
• Package content:1 x electric motor
